Top Seller

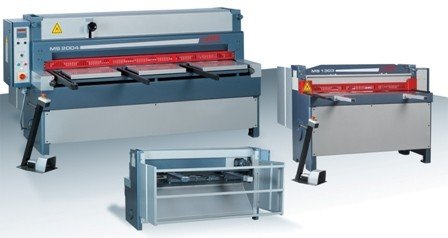

JMT MS 2004 10 Ga.
Location:
McClellan Park, CA
Manufacturer:
JMT
Model:
MS 2004
Capacity:
10 Ga
Weight:
6,200 lbs

Specifications

Condition:
new
Stock number:
8104
Width:
90"
Height:
53"
Length:
100"
Table width:
17.71"
Table height:
32"
Approx. weight:
6,200 lbs
Cutting length:
6'8"
Motor power 3ph:
7.5
Back gauge range:
30"
Cutting capacity:
10 Ga
Strokes per minute:
42
Rake angle (per foot):
5/16"
Subcategory:
Shears
Subcategory 2:
Power shears

Description

Model: MS 2004
Cutting Capacity: 10 Ga.
Cutting Length: 6'8"
Cutting Angle" 1.5 Degrees
Rake Angle (per Foot): 5/16"
Strokes per Minute: 42
Motor Power 3PH: 7.5
Back Gauge Range: 30"
Table Width: 17.71"
Table Height: 32"
Height: 53"
Width: 90"
Length: 100"
Approx. Weight: 6,200 lbs.
STANDARD EQUIPMENT:
* High-yield, heavy duty steel construction (St 44) and
stress relieved frame
* Easy blade gap adjustment
* Ball screw motorized back gauge
* Ball integrated front tables
* Finger protect
* Portable foot control with emergency stop button
* Top blades with 2 sides, bottom blades with 4 sides
* World standard electrical/mechanical components
OPTIONAL EQUIPMENT:
* User-friendly CNC Touchscreen control unit (D-Touch 7)
* Illumination and shadow line
* Special back gauge
* Pneumatic thin sheet support system
* Sheet support device with conveyor belt and scrap
container
* Stacker + alignment cylinder
* Adjustable angle stop 0-180 degrees
* Additional support arms
* Special blades
* Hold down with rubber
* Special color
* Many options and customizations are available - please
contact us for details.
