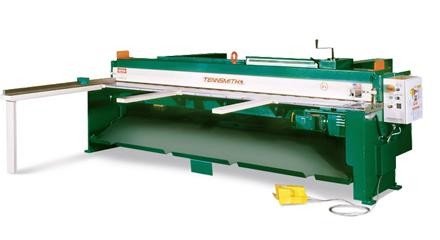

Model: MSE1016F (Front Performance Package)
Maximum Shearing Capacity, Mild Steel: 16 Gauge
Maximum Shearing Capacity, Stainless Steel: 20 Gauge
Maximum Cutting Length: 121"
Strokes Per Minute, Full Length: 40
Number of Holddowns: Solid Bar
Back Gauge System: 2X Front Operated 30" (762mm)
Blades: 4-Edge, High Chrome, High Carbon
Electrics: 3 HP, 230/460 Volt, Three Phase, 60 HZ
Floor Space, Gauges in Position: 140"L x 69"W x 50"H
Shipping Weight: 4150 lbs.
TENNSMITH's MSE mechanical shears utilize a low maintenance
design, coupled with an array of standard features for an
attractive combination of high value and solid performance.
The MSE series comes standard with four-edge, high carbon,
high chrome blades, a self-leveling hold down bar with
neoprene insert, single, continuous and jog stroke cycles,
motor reverse switch, precision machined table, dual
inch/metric inlaid bed scales and non-metallic gibs. The MSE
series also incorporates the unique front operated 2x-F back
gauge system. This system allows the operator to move the
backstop from 0 to 30 inches in approximately 2 seconds with
only two rotations of the handle.
PERFORMANCE PACKAGE MSE1016-"F" INCLUDES:
* 5' Squaring Arm
* Pair of Front Support Arms
* Front Air-Operated Material Return Sheet Support System
* Parts Counter
OR Model MSE1016-"FC" Includes the above
plus .. Front Material Cart & Stroke Counter
for an additional cost of $2200.
MSE SERIES OPTIONS & ACCESSORIES:+
$1595 220 Volt, Single Phase, 60 HZ
$2250 Squaring Arm, 10' with Inlaid Scale
$ 985 Squaring Arm, 5' with Inlaid Scale
$ 195 Additional Flip-up Stops for Squaring Arm (ea)
$ 580 Protractor Attachment
$ 995 Digital Readout for 2X Back Gauge System
$ 305 Stroke Counter (Electromechanical)
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
