Top Seller

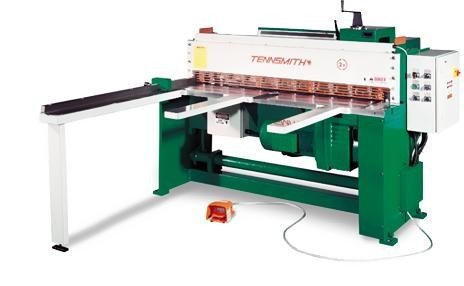

TENNSMITH LM410 10 Ga. x
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
LM410
Capacity:
10 Gauge
Weight:
3400 lbs

Specifications

Condition:
new
Stock number:
2145
Note:
Cutting capacities are rated for Mild Steel Rated
Motor:
7.5 HP, 230/460 Volt, 3 Phase
Dimensions:
72"L X 68"W X 55-1/2"H
Shipping weight:
3400 lbs
Back gauge range:
24"
# of holddown feet:
8
Max. cutting length:
52-1/4"
Extra options/accessories:
POR
Strokes per minute, full length:
35
Max. shearing capacity, mild steel:
10 Gauge
Sheet support system package price:
POR
Subcategory:
Shears
Subcategory 2:
Power shears

Description

Model: LM410
Max. Shearing Capacity, Mild Steel: 10 Gauge
Max. Shearing Capacity, Stainless Steel: 14 Gauge
Max. Cutting Length: 52-1/4"
Back Gauge Range: 24"
Strokes Per Minute, Full Length: 35
# Of Holddown Feet: 8
Motor: 7.5 HP, 230/460 Volt, 3 Phase
Dimensions: 72"L X 68"W X 55-1/2"H
Shipping Weight: 3400 lbs.
Note: Cutting capacities are rated for Mild Steel Rated
Materials at 80,000 Tensile / 44,000 Yield
Stainless Steel Rated Material at 90,000 Tensile/55,000
Yield
FEATURES:
* Unique 2X front op back gauge system .. 0-24" in 2 turns!
* Heavy steel plate construction featuring solid steel
adjustable bed
* Four-edge, high carbon high chrome blades
* Independent, self-leveling holddown feet with neoprene
inserts
* Single, continuous and jog stroke cycles
* Motor reverse switch
* Emergency stop switch
* Finger guard
* Precision machined table with hand well
* Dual inch/metric inlaid bed scales and non-metallic gibs
EXTRA OPTIONS/ACCESSORIES ... POR:
Squaring Arm, Five Foot with Dual Inlaid Inch/Metric Scale
Squaring Arm, Ten Foot with dual Inlaid Inch/Metric Scale
Additional Flip-up Stops for Squaring Arm (each)
Front Support Arms, Pair
T-Slotted Table with Two Front Support Arms with Inlaid
Inch/Metric Scales
Additional Flip-up Stops for T-Slotted Support Arms and
Table (each)
Power Back-gauge 30-Inch Travel
Protractor Attachment
Work Shadow Light LM Series
Digital Readout for 2x Back-gauge System
Stroke Counter (Electro-Mechanical)
Increased Cutting Speeds (Please consult rep)
PERFORMANCE PACKAGE OPTION:
LM410-R (Shear with 2X manaul backgauge and rear-drop sheet
support) Includes 5' squaring arm, (2) Front support arms,
Electro-mechanical stroke counter, and rear-drop air-op
sheet support system package price: POR
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
