JMT SBT 3016 5/8" x

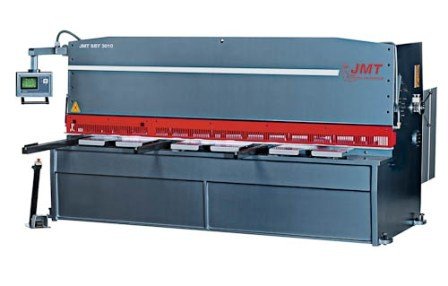

JMT SBT 3016 5/8" x 10', SHEAR, SWING BEAM TOUCHSCREEN in McClellan Park, CA

Location:
McClellan Park, CA
Manufacturer:
JMT
Model:
SBT 3016
Capacity:
108 Gallons

Specifications

Condition:
new
Stock number:
8111
Width:
88.6"
Height:
88.6"
Length:
179.1"
Weight:
36,000 lbs
Holddowns:
14
Motor power:
50 HP
Table width:
21.7"
Oil capacity:
108 Gallons
Table height:
33"
Table length:
140.9"
Throat depth:
13.8"
Cutting angle:
2 Degrees
Cutting length:
10'2"
Holddown force:
67 Tons
Back gauge range:
39.4"
Back gauge speed:
472 ipm
Front sheet supports:
2
Rake angle (per foot):
7/16"
Standard squaring arm:
59"
Spm - high speed option:
15 SPM (Full Length, Max
Cutting capacity (mild steel):
625"
Total width (with squaring arms):
150.6"
Category:
Shears
Subcategory:
Circle shears

Description

Model: SBT 3016
Cutting Length: 10'2"
Cutting Capacity (Mild Steel): .625"
Cutting Capacity - High Tensile (105,000 PSI): .375"
Throat Depth: 13.8"
Strokes per minute (Full Length, Max. Capacity): 11 SPM
SPM - High Speed Option: 15 SPM (Full Length, Max.
Capacity)
Cutting Angle: 2 Degrees
Rake Angle (per Foot): 7/16"
Holddowns: 14
Holddown Force: 67 Tons
Back Gauge Range: 39.4"
Back Gauge Speed: 472 ipm
Motor Power: 50 HP
Oil Capacity: 108 Gallons
Standard Squaring Arm: 59"
Front Sheet Supports: 2
Table Height: 33"
Table Width: 21.7"
Table Length: 140.9"
Length: 179.1"
Width: 88.6"
Total Width (with Squaring Arms): 150.6"
Height: 88.6"
Weight: 36,000 lbs.
FEATURES:
* World's heaviest and most robust swing beam shear
construction
* Proven reliable design frame with rigid swing style upper
beam
* Optimized cutting angle for minimized distortion
* Oversized roller bearing guides and box constructed swing
beam for constant blade gap over full cutting length
contribute to straight cuts
* Easy and low maintenance operation
STANDARD EQUIPMENT:
* High-yield, heavy duty steel construction (St 44) and
stress-relieved frame
* User-friendly CNC Touchscreen control unit (D-Touch 7)
* Easy blade gap adjustment *Ball integrated front tables
* 39" ballscrew back gauge with automatic swing-up
* 59" Squaring arm with scale, T-slot and tilting stop
* 39" support arms with T-slot and tilting stop
* Illumination and shadow line
* 39" flip-up finger guards
* Pressure-adjusted solid hold downs
* Foot pedal
* World standard electrical/hydraulic components
* Swing-up back gauge
OPTIONAL EQUIPMENT:
* High speed (strokes per minute)
* Motorized blade gap adjustment
* Laser cutting line
* Light curtains for finger protection
* Pneumatic sheet support device "standard" (JMT I)
* Hydraulic anti-twist device
* Special throat depth *49" back gauge
* Additional support arms
* Special blades
* Oil coolant
* Central lubrication manual
* Central lubrication motorized
* Adjustable Angle stop 0-180 Degrees
* Special color
* Control panel on opposite position
* Temperature measurement
