JMT SBT 3006 1/4" x

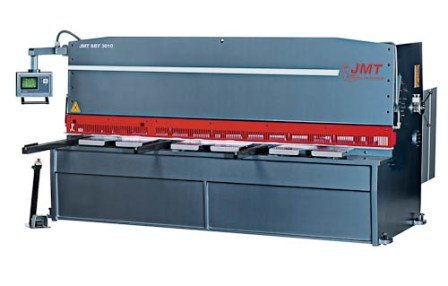

JMT SBT 3006 1/4" x 10', SHEAR, SWING BEAM TOUCHSCREEN in McClellan Park, CA

Location:
McClellan Park, CA
Manufacturer:
JMT
Model:
SBT 3006
Capacity:
53 Gallons

Specifications

Condition:
new
Stock number:
8108
Width:
86.6"
Height:
82.7"
Length:
161.8"
Weight:
17,400 lbs
Holddowns:
16
Motor power:
20 HP
Table width:
19.7"
Oil capacity:
53 Gallons
Table height:
34"
Table length:
138.4"
Throat depth:
2"
Cutting angle:
1.4 Degrees
Cutting length:
10'2"
Holddown force:
15 Tons
Back gauge range:
39.4"
Back gauge speed:
472 ipm
Front sheet supports:
2
Rake angle (per foot):
1/4"
Standard squaring arm:
59"
Spm - high speed option:
26 SPM (Full Length, Max
Cutting capacity (mild steel):
250"
Total width (with squaring arm):
145.7"
Category:
Shears
Subcategory:
Circle shears

Description

Model: SBT 3006
Cutting Length: 10'2"
Cutting Capacity (Mild steel): .250"
Cutting Capacity - High Tensile (105,000 PSI): .157"
Throat Depth: 2"
Strokes per Minute (Full Length, Max. Capcity): 17 SPM
SPM - High Speed Option: 26 SPM (Full Length, Max.
Capacity)
Cutting Angle: 1.4 Degrees
Rake Angle (per Foot): 1/4"
Holddowns: 16
Holddown Force: 15 Tons
Back Gauge Range: 39.4"
Back Gauge Speed: 472 ipm
Motor Power: 20 HP
Oil Capacity: 53 Gallons
Standard Squaring Arm: 59"
Front Sheet Supports: 2
Table Height: 34"
Table Width: 19.7"
Table Length: 138.4"
Length: 161.8"
Width: 86.6"
Total Width (with Squaring Arm): 145.7"
Height: 82.7"
Weight: 17,400 lbs.
FEATURES:
* World's heaviest and most robust swing beam shear
construction
* Proven reliable design frame with rigid swing style upper
beam
* Optimized cutting angle for minimized distortion
* Oversized roller bearing guides and box constructed swing
beam for constant blade gap over full cutting length
contribute to straight cuts
* Easy and low maintenance operation
STANDARD EQUIPMENT:
* High-yield, heavy duty steel construction (St 44) and
stress-relieved frame
* User-friendly CNC Touchscreen control unit (D-Touch 7)
* Easy blade gap adjustment *Ball integrated front tables
* 39" ballscrew back gauge with automatic swing-up
* 59" Squaring arm with scale, T-slot and tilting stop
* 39" support arms with T-slot and tilting stop
* Illumination and shadow line
* 39" flip-up finger guards
* Pressure-adjusted solid hold downs
* Foot pedal
* World standard electrical/hydraulic components
* Swing-up back gauge
OPTIONAL EQUIPMENT:
* High speed (strokes per minute)
* Motorized blade gap adjustment
* Laser cutting line
* Light curtains for finger protection
* Pneumatic sheet support device "standard" (JMT I)
* Hydraulic anti-twist device
* Special throat depth *49" back gauge
* Additional support arms
* Special blades
* Oil coolant
* Central lubrication manual
* Central lubrication motorized
* Adjustable Angle stop 0-180 Degrees
* Special color
* Control panel on opposite position
* Temperature measurement
