Top Seller

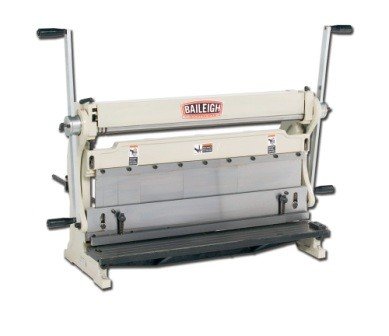

BAILEIGH SBR-3020 3-IN-1, 30" SHEAR/BRAKE/SLIPROLL
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SBR-3020
Capacity:
20 ga. (.036")
Weight:
340 lbs

Specifications

Condition:
new
Stock number:
6771
Power:
Manual
Bed width:
30"
Finger lengths:
1", 2-1/8", 3-1/8", 6", 8", 10-1/8"
Shear capacity:
20 ga. (.036")
Max. bend angle:
90 deg
Shipping weight:
340 lbs
Bending capacity:
20 ga. (.036")
Finger thickness:
1/4"
Min. rolling dia:
1.54"
Rolling capacity:
20 ga. (.036")
Shipping dimensions:
38" x 18" x 27"

Description

Model: SBR-3020
Max. Material Thickness (Stainless Steel): .019"
Rolling Capacity: 20 ga. (.036")
Shear Capacity: 20 ga. (.036")
Min. Rolling Dia.: 1.54"
Bed Width: 30"
Bending Capacity: 20 ga. (.036")
Max. Bend Angle: 90 deg.
Power: Manual
Shipping Weight: 340 lbs.
Finger Lengths: 1", 2-1/8", 3-1/8", 6", 8", 10-1/8"
Finger Thickness: 1/4"
Shipping Dimensions: 38" x 18" x 27"
DESCRIPTION:
The SBR-3020 3-in-1 combination machine is perfect for small
shops that have low production runs or have a lot of one off
projects. It combines a metal shear, press brake and slip
roll into one machine that uses up little floor space. The
SBR-3020 has the capacity to work up to 20 gauge mild steel
and 16 gauge aluminum in widths up to 30 inches wide.
The vertical press brake portion of the SBR-3020 has a
maximum bend angle of 90 degrees with adjustable fingers on
the top beam to easily assist with making any size boxes.
The slip roll portion has three wire grooves, and can form
rolls down to 1.54" in diameter. For shearing a handy
spring assist hold down helps reduce deformation of the cut.
