Top Seller

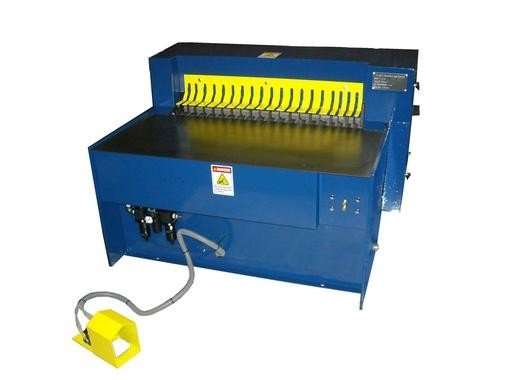

JL-36 CLEATFOLDER, PNEUMATIC POWER, 18
Location:
McClellan Park, CA, USA
Price:
No price
Manufacturer:
Capacity
Model:
JL-36
Capacity:
18 Gauge Mild Steel
Weight:
1100 lbs

Specifications

Condition:
new
Stock number:
9454
Weight:
1100 lbs
Table depth:
21-1/2"
Table height:
36"
Bend capacity:
18 Gauge Mild Steel
Bending length:
3 to 36"
Air consumption:
less than 0.5 Ct ft/cycle at 100psi
Air requirements:
80-100 PSI, 4-5 Sec/Cycle
Back gauge depth:
7/16 or 1/2" Fixed (specific w/order)
Bend angle options:
180 degree
Overall dimensions:
48"W x 40"W x 34"H
Jl36-cleatbender only:
$11000.00
Gauge and 2 alt. bend angles:
$13000.00
Gauge and 2 alt. bend angles 2:
$14000.00
Back gauge and 1 alt. bend angle:
$12000.00
Subcategory:
Cleatbenders

Description

MODEL: JL-36
Bending Length: 3 to 36"
Bend Capacity: 18 Gauge Mild Steel
Table Height: 36"
Table Depth: 21-1/2"
Back gauge Depth: 7/16 or 1/2" Fixed (specific w/order)
Bend Angle Options: 180 degree
Air Requirements: 80-100 PSI, 4-5 Sec/Cycle
Air Consumption: less than 0.5 Ct ft/cycle at 100psi
Weight: 1100 lbs.
Overall Dimensions: 48"W x 40"W x 34"H
(4) MODELS TO CHOOSE FROM:
JL36-Cleatbender only: $11000.00
JL36-B-Cleatbender with a manually adjustable
back gauge and 1 alt. bend angle: $12000.00
JL36-C-Cleatbender w/2position power back
gauge and 2 alt. bend angles: $13000.00
JL36-D-Cleatbender w/3 position power back
gauge and 2 alt. bend angles: $14000.00
ThtJL-36 line of cleatfolders are a combination of tried and
true design principals, strengthened by changes resulting
from 25 years of dealing directly with customer feedback, to
produce a machine that can handle a variety applications with
virtually no adjustment required. Problems with odd shaped,
or specialty fittings are a thing of the past. With four
option packages available, coupled with the ability to
produce custom units, we can handle nearly any situation our
customers may encounter.
100% MADE IN THE U.S.A.!!
