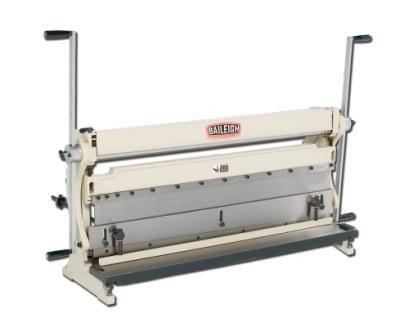

BAILEIGH SBR-4020 3-IN-1, 40" SHEAR/BRAKE/SLIPROLL
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SBR-4020
Capacity:
20 ga. (.036")
Weight:
461 lbs

Specifications

Condition:
new
Stock number:
6772
Power:
Manual
Bed width:
40"
Shear capacity:
20 ga. (.036")
Shipping weight:
461 lbs
Bending capacity:
20 ga. (.036")
Min. rolling dia:
1.70"
Rolling capacity:
20 ga. (.036")
Shipping dimensions:
53" x 18" x 29"

Description

Model: SBR-4020
Max. Material Thickness (Stainless Steel): .019"
Rolling Capacity: 20 ga. (.036")
Shear Capacity: 20 ga. (.036")
Min. Rolling Dia.: 1.70"
Bed Width: 40"
Bending Capacity: 20 ga. (.036")
Power: Manual
Shipping Weight: 461 lbs
Shipping Dimensions: 53" x 18" x 29"
DESCRIPTION:
Baileigh Industrial's SBR-4020 combination shear, brake and
roll has a very small floor plan that can be bench or stand
mounted. It combines a metal shear, a press brake and a slip
roll all into one machine making it perfect for those small
sheet metal shops or garage shops with limited space.
The SBR-4020 can shear, brake, or roll up to 20 gauge mild
steel and 16 gauge aluminum, with material that is up to 40
inches wide. The manual press brake can bend up to 90
degrees in sheet metal. The upper beam of the press brake
has hardened adjustable dies that allows the fabricator to
make certain boxes and pans. The manual metal shear can cut
at full capacity across the entire width of the machine. The
manual slip roll has hardened rolls with three wire grooves
for small round stock. A back gauge is also included to help
with repeatability.
Like all Baileigh combination shear, brake and roll
machines, it offers years of use at a very affordable price.
