Top Seller

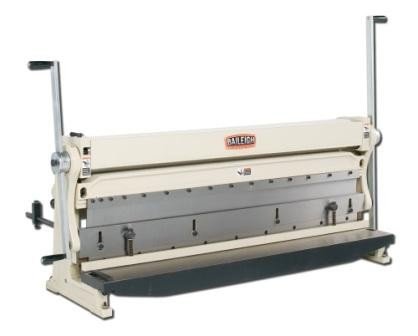

BAILEIGH SBR-5220 3-IN-1, 52" SHEAR/BRAKE/SLIPROLL
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SBR-5220
Capacity:
20 ga. (.036")
Weight:
830 lbs

Specifications

Condition:
new
Stock number:
6773
Power:
Manual
Bed width:
52"
Shear capacity:
20 ga. (.036")
Max. bend angle:
90 deg
Shipping weight:
830 lbs
Bending capacity:
20 ga. (.036")
Min. rolling dia:
1.70"
Rolling capacity:
20 ga. (.036")
Shipping dimensions:
67" x 23" x 30"

Description

Model: SBR-5220
Max. Material Thickness (Stainless Steel): .019"
Rolling Capacity: 20 ga. (.036")
Shear Capacity: 20 ga. (.036")
Min. Rolling Dia.: 1.70"
Bed Width: 52"
Bending Capacity: 20 ga. (.036")
Max. Bend Angle: 90 deg.
Power: Manual
Shipping Weight: 830 lbs.
Shipping Dimensions: 67" x 23" x 30"
DESCRIPTION:
Have a small shop but still want the ability to work with 4'
wide sheets of sheet metal? Take a look at the SBR-5220
from Baileigh Industrial. The SBR-5220 manual press brake
and shear also has a slip roll feature making this machine a
combination 3-in-1 shear brake roll. This model has a
maximum capacity of 20 gauge mild steel and 16 gauge
aluminum over its entire 52 inch width.
The manual press brake has a hardened single-vee bottom die
and the upper beam as removable and movable hardened finger
dies. The movable fingers are in varying widths so the
operator can move them around to make boxes and pans in
varying sizes. The manual metal shear can cut 20 gauge mild
steel across the entire width of the machine. The bottom
and top shear blades are hardened and reversible for long
life. The manual slip roll has hardened bottom and top roll
and there are also three wire grooves to roll round rod.
Rolls can be formed to a minimum diameter of 1.7 degrees.
Like all Baileigh Industrial machines the SBR-5220 is built
for years of use in any condition and the price makes this
machine a great value.
