Capacity: Slitter, 3 cuts on 22 to 26 Ga.
Beader, 3 beads on 22 to 26 Ga.
Speed: Approx. 60 feet per minute.
Motor: 1/2 HP 115/1/60/60 RPM .
Drive: Roller Chain
Base: Arc Welded Steel.
Approx Weight: 535 lbs.

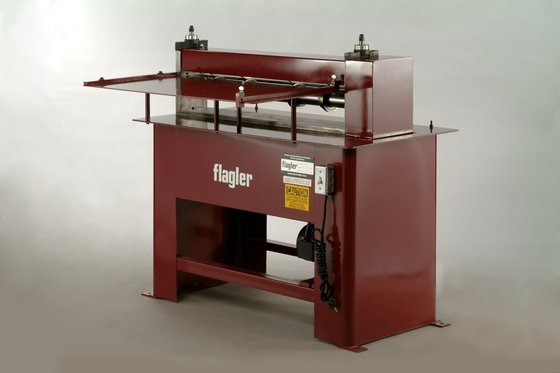

The Flagler Sheet Gang Slitters comes standard with 3 pair
of slitter knives. This unit is available in 3 models -
36", 48" and 60" widths. A fully adjustable feed gauge
allows for the slitting of any increments down to and
including a 4" wide starting blank. These Flagler slitters
will slit bronze, aluminum, brass, and other materials as
well as conventional galvanized sheets. All blade
assemblies are fully adjustable over width of the machine.
Micrometer adjustments on the main slitting arbor for fast,
MADE IN THE USA!!
