Top Seller

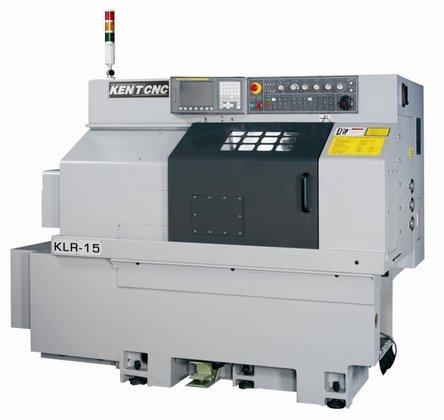

KENT KLR-15 13" CNC TURNING
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
KLR-15

Specifications

Condition:
new
Stock number:
7608
X-axis:
6.89"
Z-axis:
13.77"
Max speed:
4500 RPM
Spindle motor:
20 HP
Machine weight:
6,612 lbs
Machine dimensions:
87" x 51" x 63"
Max turning length:
11.8" (300 mm)
Max turning diameter:
13" (330mm)
Spindle through hold / bar capacity:
2.44" / 1.73"
Subcategory:
Turning centers

Description

Model: KLR-15
Max Turning Diameter: 13" (330mm)
Max Turning Length: 11.8" (300 mm)
Spindle Motor: 20 HP
Spindle Through Hold / Bar Capacity: 2.44" / 1.73"
Max Speed: 4500 RPM
X-Axis: 6.89"
Z-Axis: 13.77"
Machine Weight: 6,612 lbs.
Machine Dimensions: 87" x 51" x 63"
FEATURES:
* 15/20hp Fanuc Spindle Motor
* 13.0" Cutting Diameter
* 11.8" Cutting Length
* Symmetrically Designed Reinforced Headstock
* High Precision Spindle w/Dual-Roller Bearing & Self-
Alignment Angular Bearings
* Bar Capacity 1.73"
* 3 Soft Jaw Sets & 1 Hard Jaw Set
* Fanuc "i" Series High Torque Spindle & Axis Motors
* Absolute Encoders.No Need To Ever "Home" Machine Axis
* Fanuc 0i-TD Control w/8.4" Color LCD Monitor
* 400 Work Offsets
* 400 Registered Part Program Storage
* Fanuc Macro "B"
* Fanuc High Speed Skip Function
* Spare "M" Functions (4)
* Fanuc Auto-Measure System (X & Z)
* Two Gigabyte Flash Drive
* Jog Handle
* Chip Conveyor & Chip Cart
* Fanuc Digital DriveSystem
* High Speed/High Accuracy Turret
* 19 Piece Set, Turret Tool Holders
* ToolIndex Time of 0.3 Seconds
* Extra Large Curvic Coupled w/Roller-Cam High Precision
Turret
* SMARTr Automatic Lubrication System
* Extra Large Roll Out Coolant Tank
* Electrical Cabinet Heat Exchanger
* Dual Halogen Work Lights
* Fully Enclosed Way Covers - Stainless Steel
* Manual Guide "i" Computer Assist Programming
* Induction Hardened And Precision Ground Box Ways
w/Turcite-B
* MEEHANITE Casting
* C-3 Grade Precision Ball Screws
* Two Year Parts Warranty
