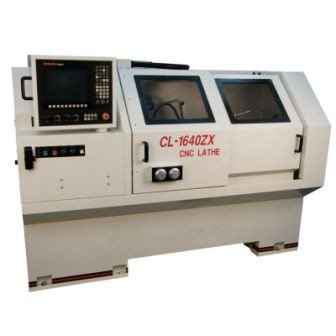

JET CL-1640ZX CNC LATHE WITH
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
CL-1640ZX
Spindle Bore:
3-1/8
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
7876
Motor:
10HP, 230V, 3Ph
Width:
56 inch
Height:
77 inch
Length:
101 inch
Net weight:
5680 pound
Stock number:
320930
Spindle mount:
D1-8
Overall dimensions:
63 x 53 x 91
Spindle bore (in.):
3-1/8
Width of bed (in.):
13-3/8
Max tool size (in.):
1 x 1
Swing over bed (in.):
16
Carriage travel (in.):
35
Spindle taper w/ sleeve:
MT-7
Swing through gap (in.):
25-7/8
Cross slide travel (in.):
9
Number of spindle speeds:
Variable
Range of cross feeds (ipr):
315in/min
Steady rest capacity (in.):
3/8 to 7
Taper in tailstock spindle:
MT-5
Swing over cross slide (in.):
8
Range of spindle speeds (rpm):
100 - 2000
Distance between centers (in.):
40
Tailstock spindle travel (in.):
5
Range of longitudinal feeds (ipr):
394in/min
Subcategory:
Turning centers

Description

Model: CL-1640ZX-CNC
Stock Number: 320930
Swing over Bed (in.): 16
Swing over Cross Slide (in.): 8
Swing Through Gap (in.): 25-7/8
Distance Between Centers (in.): 40
Spindle Bore (in.): 3-1/8
Spindle Mount: D1-8
Spindle Taper W/ Sleeve: MT-7
Number of Spindle speeds: Variable
Range of Spindle Speeds (RPM): 100 - 2000
Range of Longitudinal Feeds (IPR): 394in/min
Range of Cross Feeds (IPR): 315in/min
Max Tool Size (in.): 1 x 1
Cross Slide Travel (in.): 9
Carriage Travel (in.): 35
Tailstock Spindle Travel (in.): 5
Taper in Tailstock Spindle: MT-5
Steady Rest Capacity (in.): 3/8 to 7
Width of Bed (in.): 13-3/8
Motor: 10HP, 230V, 3Ph
Overall Dimensions: 63 x 53 x 91
Height: 77 inch
Width: 56 inch
Length: 101 inch
Net Weight: 5680 pound
FEATURES:
* Anilam 4200T with 12.1 TFT Flat Screen CNC Control
* Dual electronic handwheels for manual control
* Hardened and precision ground bed ways
* High alloy gears hardened, ground and honed
* 3-Bearing spindle support
* Automatic homing
* Easy access chip removal
* 4 Station Programable Turret
* Automatic lubrication system
* Coolant system with 5.5gallon coolant tank
* Turcite B on carriage sliding surfaces
* Teach In Mode
* 255 Pairs of Tool offsets
* Rigid Tapping is Standard
STANDARD EQUIPMENT:
* 10" 3-jaw chuck
* 16" Face plate
* Work light
* Tool box and tools
* Fully enclosed Cabinet
* Steady Rest
2-YEAR FACTORY WARRANTY INCLUDED!!
