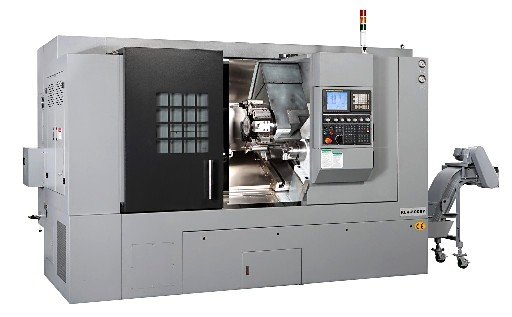

KENT KLM-300SY 18.5", CNC Sub
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
KLM-300SY

Specifications

Condition:
new
Stock number:
7971
B-axis:
26.0"
X-axis:
10.82"
Y-axis:
3.94"
Z-axis:
29.52"
Machine weight:
14,326 lbs
Machine dimensions:
126" x 79" x 83"
Max speed (main / sub):
3500 / 6000 RPM
Max turning length - sub:
24.2" (615mm)
Max turning length - main:
24.2" (615mm)
Max turning diameter - sub:
14.8" (375mm)
Spindle motor (main / sub):
25 / 10 HP
Max turning diameter - main:
18.5" (470mm)
Subcategory:
Turning centers

Description

Model: KLM-300SY
Max Turning Diameter - Main :18.5" (470mm)
Max Turning Diameter - Sub :14.8" (375mm)
Max Turning Length - Main :24.2" (615mm)
Max Turning Length - Sub :24.2" (615mm)
X-Axis :10.82"
Z-Axis :29.52"
Y-Axis :3.94"
B-Axis :26.0"
Spindle Motor (Main / Sub) :25 / 10 HP
Max Speed (Main / Sub) :3500 / 6000 RPM
Machine Weight :14,326 lbs.
Machine Dimensions :126" x 79" x 83"
FEATURES:
* 20/25hp Fanuc Spindle Motor
* 17.7" Cutting Diameter ~ Main & Sub
* 24" Cutting Length ~ Main & Sub
* Symmetrically Designed Reinforced Headstock, Main & Sub
* High Precision Spindle w/Dual-Roller Bearing & Self-
Alignment Angular Bearings
* Bar Capacity 2.95" Main Spindle ~ 1.77" Sub Spindle
* 3 Soft Jaw Sets & 1 Hard Jaw Set, Each Spindle
* Fanuc "i" Series High Torque Spindle & Axis Motors
* Absolute Encoders.No Need To Ever "Home" Machine Axis
* Fanuc 18i-TB Control w/8.4" Color LCD Monitor
* Embedded Ethernet
* 400 Work Offsets
* 400 Registered Part Program Storage
* Fanuc Macro "B"
* Fanuc High Speed Skip Function
* Spare "M" Functions
* Fanuc Auto-Measure System (X & Z)
* Two Gigabyte Flash Drive
* Chip Conveyor & Chip Cart
* Fanuc Digital Drive System
* 12 Live Station, High Speed/High Accuracy VDI-40 Power
Servo Turret w/"Y" Axis
*Fully Programmable, +/- 1.97" "Y" Axis
* Turret Tool Holders
* 7.3/10 hp Fanuc Sub Spindle Motor
* SMARTr Automatic Lubrication System
* Extra Large Roll Out Coolant Tank
* Electrical Cabinet Heat Exchanger
* CE Rated Electrics
* Dual Halogen Work Lights
* Fully Enclosed Way Covers - Stainless Steel
* Manual Guide "i" Computer Assist Programming
* Induction Hardened And Precision Ground Box Ways
w/Turcite-B
* MEEHANITE Casting
* C-3 Grade Precision Ball Screws
