- Stock number:
- 110 Volt
- Speed is:
- 0 to 6 RPM (Variable)
- 60" x 44" x 68"
- Max current:
- 300 Amps
- Chuck capacity:
- 1/4"OD / 10-3/4"ID
- Shipping weight:
- 350 lbs
- Max weight capacity:
- 250 lbs
- Machine Tools equipment in United States
- Welding positioners
Max Weight Capacity: 250 lbs.
Speed is: 0 to 6 RPM (Variable)
Chuck Capacity: 1/4"OD / 10-3/4"ID
Standard with 8" Chuck with 2-3/8" Thru-hole
Max Current: 300 Amps
Power: 110 Volt
Dimensions: 60" x 44" x 68"
Shipping Weight: 350 lbs.
Ever wish you had a third or even fourth hand when trying to
weld something? Or possible having to weld around a pipe
only to have the cable wrapped around the project because
instead of the material spinning you went around the
material? If you answered yes, then you need a welding

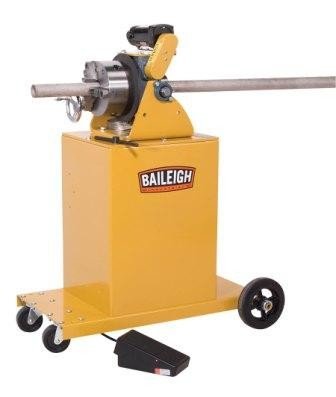

positioner like the WP-1800 from Baileigh Industrial.
The WP-1800 is a must for precision welding of round tubing,
pipe, or solids. Unlike other positioners on the market,
the WP-1800 was designed with user comfort in mind. The
rotational chuck is mounted on a portable cart and places
the work piece at perfect sitting height to relieve stress
The chuck operates of 110 volts of power and is variable
speed. Speed can be adjusted from 0 to 6 rpm with the use
of the foot pedal or possibly be locked in at a set speed
from the control panel. The WP-1800 is also a self
contained welding positioner that can be taken to a job site
with no external grounding necessary. Just put your ground
clamp on the ground peg, plug in the machine to power source
and turn it on. Variable speed DC drive with foot pedal
control offers hands free operation while welding, grinding,
or brazing. Speed is 0-6 RPM
MADE IN THE U.S.A.!!
