COMEQ BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$19,800 USD
Manufacturer:
COMEQ
Model:
DIGIBEND 200
Capacity:
10.5 GALLONS

Specifications

Condition:
new
Stock number:
061939
Motor:
3 HP, 3 PHASE
Options:
PRICE ON REQUEST
Return speed:
1.102"/SECOND
Stroke length:
7.67"
Bending height:
7.87"
Working height:
36.43"
Oil tank capacity:
10.5 GALLONS
Hydraulic pressure:
20 TONS
Maximum oil pressure:
14.5 PSI
Fixture points - no.1:
3.15" DIAMETER
Fixture points - no.2:
1.97" DIAMETER
Maximum working speed:
0.393"/SECOND
Minimum working speed:
0.078"/SECOND
Work table dimensions:
18.9" X 41.7"

Description

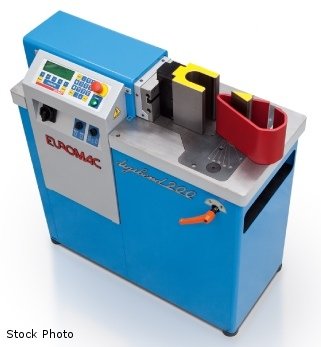

EUROMAC (NEW) MODEL DIGIBEND 200 HORIZONTAL
BENDING MACHINE
HYDRAULIC PRESSURE ........... 20 TONS
STROKE LENGTH ................ 7.67"
OIL TANK CAPACITY ............ 10.5 GALLONS
MAXIMUM WORKING SPEED ........ 0.393"/SECOND
MINIMUM WORKING SPEED ........ 0.078"/SECOND
RETURN SPEED ................. 1.102"/SECOND
FIXTURE POINTS - NO.1 ........ 3.15" DIAMETER
FIXTURE POINTS - NO.2 ........ 1.97" DIAMETER
MAXIMUM OIL PRESSURE ......... 14.5 PSI
WORKING HEIGHT ............... 36.43"
WORK TABLE DIMENSIONS ........ 18.9" X 41.7"
BENDING HEIGHT ............... 7.87"
RAM SPEED ON FORWARD STROKE .. 0.236"-0.949"
MOTOR ........................ 3 HP, 3 PHASE
CONTROL CAN STORE
PARAMETERS FOR 99 BENDS
50 BENDING SEQUENCES
80 BENDS PER SEQUENCE
CONTROL DISPLAYS
BENDING PARAMETERS
FORWARD/RETURN STOP
RAM POSITION
PIECE COUNTER
TOOLING
BENDING TOOL 30 DEGREES WITH U SHAPED
MOVABLE BENDING PUNCH
SHEARING UNIT FOR FLAT BARS
2 JAW BENDING TOOL
STRAIGHTENING TOOL
2 JAW BENDING TOOL WITH SET OF FLANGES
ROTARY BENDING TOOL
FEATURES
MEEHANITE STEEL CASTING ON HYD CYLINDERS
FAST SET-UP TOOL INDEXING SYSTEMS
HARDENED T-SLOTS
ALL PARTS ARE HARDENED & PRECISION GROUND
2 WORKING SPEEDS
SINGLE STROKE, SINGLE STEP AND AUTO MODE
OPTIONS .................... PRICE ON REQUEST
STRAIGHTENING TOOLS .............. POR
ROTARY BENDING TOOLS ............. POR
SHAPERS FOR ROTARY BENDING TOOLS . POR
U AND V DIES ..................... POR
DIE EXTENSIONS ................... POR
BENDING AND PIN PUNCHES .......... POR
BENDING INSERTS .................. POR
ANTI-DEFLECTION BARS ............. POR
PIPE BENDING TOOLS ............... POR
FLANGE BENDING TOOLS ............. POR
SHEARING TOOLS ................... POR
PUNCHING TOOLS ................... POR
