Top Seller
COMEQ BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$39,800 USD
Manufacturer:
COMEQ
Model:
DIGIBEND 800
Capacity:
26 GALLONS

Specifications

Condition:
new
Stock number:
061941
Motor:
5.5 HP 3 PHASE
Options:
PRICE ON REQUEST
Return speed:
1.77"/SECOND
Stroke length:
13.58"
Bending height:
7.87"
Working height:
36.43"
Oil tank capacity:
26 GALLONS
Hydraulic pressure:
80 TONS
Maximum oil pressure:
14.5 PSI
Fixture points - no.6:
3.15" DIAMETER
Minimum working speed:
0.275"/SECOND
Work table dimensions:
25.6" X 61"

Description

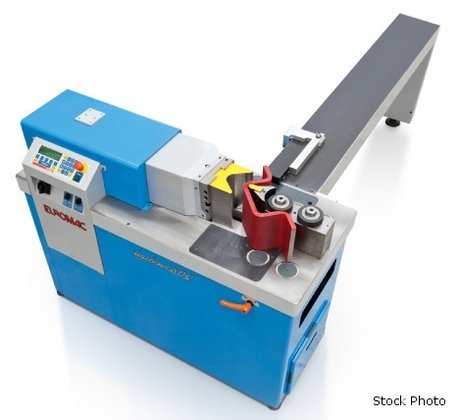

EUROMAC (NEW) MODEL DIGIBEND 800 HORIZONTAL
BENDING MACHINE
HYDRAULIC PRESSURE ........... 80 TONS
STROKE LENGTH ................ 13.58"
OIL TANK CAPACITY ............ 26 GALLONS
MAX WORKING SPEED ("/SECOND) . 0.393-0.905
MINIMUM WORKING SPEED ........ 0.275"/SECOND
RETURN SPEED ................. 1.77"/SECOND
FIXTURE POINTS - NO.6 ........ 3.15" DIAMETER
MAXIMUM OIL PRESSURE ......... 14.5 PSI
WORKING HEIGHT ............... 36.43"
WORK TABLE DIMENSIONS ........ 25.6" X 61"
BENDING HEIGHT ............... 7.87"
RAM SPEED ON FORWARD STROKE .. 0.236"-0.949"
MOTOR ........................ 5.5 HP 3 PHASE
CONTROL CAN STORE
PARAMETERS FOR 99 BENDS
50 BENDING SEQUENCES
80 BENDS PER SEQUENCE
CONTROL DISPLAYS
BENDING PARAMETERS
FORWARD/RETURN STOP
RAM POSITION
PIECE COUNTER
TOOLING
BENDING TOOL WITH 1" DIAMETER PIN
BENDING TOOL 30 DEGREES WITH U SHAPED
BENDING TOOL WITH 2" PIN
PUNCH AND DIE H=400
REVOLVING PIN DIE
MOVABLE BENDING PUNCH
3" PIN BENDING PUNCH
4-JAW BENDING TOOL
SHEARING UNIT FOR FLAT BARS
PUNCHING UNIT FOR HOLES UP TO 1" DIAMETER
2-JAW BENDING TOOL
STRAIGHTENING TOOL
2 JAW BENDING TOOL WITH SET OF FLANGES
ROTARY BENDING TOOL
FEATURES
MEEHANITE STEEL CASTING ON HYD CYLINDERS
FAST SET-UP TOOL INDEXING SYSTEMS
HARDENED T-SLOTS
ALL PARTS ARE HARDENED & PRECISION GROUND
2 WORKING SPEEDS
SINGLE STROKE, SINGLE STEP AND AUTO MODE
OPTIONS .................... PRICE ON REQUEST
EXTRA HIGH BENDING ............... POR
STRAIGHTENING TOOLS .............. POR
BENDING TOOLS .................... POR
ROTARY BENDING TOOLS ............. POR
SHAPERS FOR ROTARY BENDING TOOLS . POR
U AND V DIES ..................... POR
DIE EXTENSIONS ................... POR
BENDING AND PIN PUNCHES .......... POR
BENDING INSERTS .................. POR
ANTI-DEFLECTION BARS ............. POR
PIPE BENDING TOOLS ............... POR
FLANGE BENDING TOOLS ............. POR
SHEARING TOOLS ................... POR
PUNCHING TOOLS ................... POR
