Top Seller

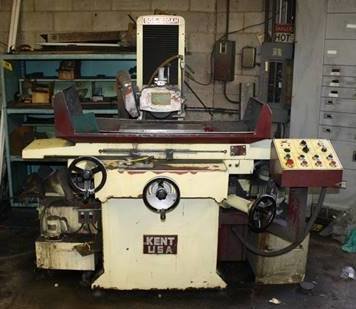

Kent SGS-1020AH 10" X 20"
Location:
Holland, OH
Model:
SGS-1020AH
Weight:
550 LBS.

Specifications

Condition:
used
Stock number:
64285
New:
11/1997
Serial:
735033
Coolant:
YES
Wheel dresser:
OVER HEAD
Dust collector:
YES
Hydraulic motor:
2 HORSEPOWER
Grinding capacity:
20" X 10"
Cross table travel:
10-7/8"
Grinding wheel size:
8" X 1" X 1-1/4"
Grinding wheel motor:
2 HORSEPOWER
Grinding wheel speed:
3460 RPM
Maximum workpiece weight:
550 LBS.
Longitudinal table travel:
21"
Spindle to table (maximum):
19-1/4"
Cross feed rates (variable):
004" TO .2" PER REVERSAL
Permanent magnetic chuck size:
19-5/8" X 9-7/8" X 2-5/8"H
Subcategory:
Grinders

Description

SERIAL ............................. 735033
MODEL .............................. SGS-1020AH
NEW ................................ 11/1997
GRINDING CAPACITY .................. 20" X 10"
SPINDLE TO TABLE (MAXIMUM) ......... 19-1/4"
LONGITUDINAL TABLE TRAVEL .......... 21"
CROSS TABLE TRAVEL ................. 10-7/8"
TABLE TRAVERSE SPEED (VARIABLE) .... 17 TO 82 FPM
CROSS FEED RATES (VARIABLE) ........ .004" TO .2" PER REVERSAL
PERMANENT MAGNETIC CHUCK SIZE ...... 19-5/8" X 9-7/8" X 2-5/8"H
GRINDING WHEEL SIZE ................ 8" X 1" X 1-1/4"
GRINDING WHEEL SPEED ............... 3460 RPM
MAXIMUM WORKPIECE WEIGHT ........... 550 LBS.
LONGITUDINAL & CROSS TABLE FEEDS ... HYDRAULIC
WHEEL DRESSER ...................... OVER HEAD
COOLANT ............................ YES
DUST COLLECTOR ..................... YES
HYDRAULIC MOTOR ................... 2 HORSEPOWER
GRINDING WHEEL MOTOR ............... 2 HORSEPOWER
