1970 LANG EL 45 in
Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Lang
Model:
EL 45

Specifications

Condition:
used
Year:
1970
Stock number:
109110

Description

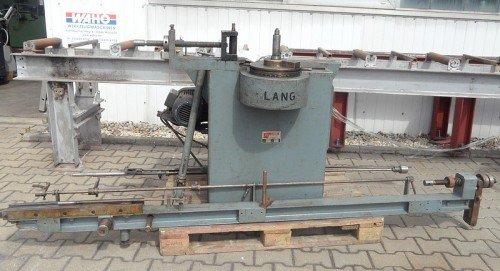

Electromechanical Dornrohrbrachtmaschine machine LANG type EL 45
Mach. No .: 2709 Year of construction 1970
Technical specifications:
For pipe outer diameter: 40 mm
Wall thickness up to: 2 mm
Bendable materials: all kinds of pipes, solid material,
: Profile material, Moldings,:
: Window profiles
Bending angles to be performed with standard tools up to: 180 °
Gr. Bending radius up to: 250 mm
Pure bending time for 90 ° at max bending speed: 4 sec
Mandrel length: 2000 mm
Bending speed for 90 ° arc: 4 sec.
Drive motor: 380 V, 1.3 kW
Dimensions approx .: 1200 x 3250 x 1050 mm
Weight approx .: 550 kg
With
- Adjustable to left and right bends
- Mandrel retraction device for easy removal of the bent tube
- pre-assembled rotary table for greater freedom from bending
- 2 m mandrel bending device
- 1 segment Drm. 18
- 1 segment drm. 25
With 45 ° top and bottom angles in the bending segment
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
