Location:
Lincolnshire, IL
Manufacturer:
Eldorado
Capacity:
1/2" Diameter
Weight:
4,000 Lbs.

Specifications

Condition:
used
Year:
1985
Stock number:
38381
Motor:
2 HP, 3450 RPM
Electrics:
208-230/460V/3Ph/60Hz
Actual dimensions:
75" x 60" x 58"(H)
Approximate weight:
4,000 Lbs.
Coolant dry weight:
1,000 Lbs.
Ball screw feed rate:
0.1 - 99.9 IPM
Ball screw stroke length:
15"
Capacity with 15" stroke:
1/2" Diameter
Coolant actual dimensions:
78" x 34" x 34"(H)
Coolant volume - variable:
0 - 10 GPM
Coolant reservoir capacity:
65 Gal.
Coolant pressure - variable:
200 - 2000 PSI
Jog reverse & forward feed rate:
200 IPM
Number of gun drilling spindles:
2
Spindle speeds - incremental (18):
1,445 - 11,740 RPM
Gun drilling diameter capacity - mild steel:
0.055" to .50
Subcategory:
Drills, gun

Description

New - 1985
Serial No. 1202 & 1203
SPECIFICATIONS:

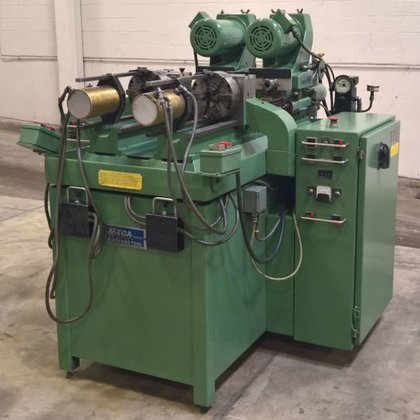

ELDORADO F18-1101-1 HIGH PRESSURE COOLANT SPECIFICATIONS:
Serial No. 980
EQUIPPED WITH:
Eldorado Model #F18 High Pressure Coolant System
Mega Flo-Minder Flow Rate Monitor
Spindle Load Minder
Mega Quikloc, Key Adjustable Scroll Type Chuck Coupled w/Air Actuated
Precision Swing Away End Clamp
(2) Aerotech DC Servo Controllers
(2) DC Torque Motor w/Integral Tachometer
(2) 8" 3-Jaw Chucks
Automatic Lubrication System
*Preliminary Specifications Subject to Verification.
