Top Seller
54" Table 5HP Spindle Birmingham
Location:
Harrison, NJ
Price:
$22,400 USD
Manufacturer:
Birmingham
Model:
BPV-B2V40 Bed-Type Mill

Specifications

Condition:
new
Stock number:
137287
Model 2:
BPV-B2V40
Age info:
NEW
Spindle taper:
NT #40 (also available in R-8 or #30 tapers)
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

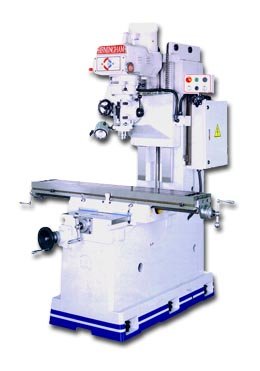

New Birmingham 10" X 54" Bed-Type 5 HP Milling Machine
Model: BPV-B2V40
ISO 9001 certified
Mechanical variable spindle speeds from 70-4300 rpm
Heavy duty Meehanite castings and hardened & ground square ways
Hardened and ground table and table T-slots
Turcite coated surfaces for x/y axis
Precision ground ACME leadscrews
X & Y axis ac inverter drive power feeds
Manual or automaic quill feeds 0.0015", 0.003", 0.006" per revolution
Auto lubrication with timer
Halogen work light
Complete coolant system with pump, nozzle and base chip & coolant pan
Counterbalanced milling head
Rubber way covers on x & y axis
Control panel w/electric cabinet
Tool box kit and leveling pads
Power source 220V, 3 Ph
One year warranty for parts
Specifications:
Table Size 10" x 54"
Table Load Capacity 1500 Lbs
X Axis Travel 31 1/2"
Y Axis Travel 17 1/8"
Z Axis Travel 19 5/6" (head vertical travel on column)
Spindle Taper: NT #40 (also available in R-8 or #30 tapers)
Spindle Speed, Variable 70-4300 rpm
Quill Spindle Diameter 4 1/8"
Quill Spindle Travel 5"
Longitudinal Feeds, Variable 7/8-33-3/4"/min
Cross Feeds manual
Vertical Feeds 33"/min. rapid 7/8"-33-3/4" variable
Net Weight, (lbs) 3880
Optional Equipment (call for pricing):
X & Y axis ballscrews
Z axis ballscrews
Fully closed way covers on column
Newall digital readout, Topaz, 3 axis (free installation)
Power air draw bar (free installation)
6" anglock precision vise with swivel base
8" anglock precision vise with swivel base
Clamping kit, P.N CK-52, 52 pcs. 5/8" T-slot, 1/2" 13NC stud
