1966 5" Width 10" Length
Location:
Harrison, NJ
Manufacturer:
Taft Pierce
Model:
#1
Weight:
1,500 LBS.

Specifications

Condition:
used
Year:
1966
Serial number:
2225
Stock number:
149342
Cross travel:
5- 1/2"
Approx. weight:
1,500 LBS.
Approx. dimensions:
61" X 45" X 66"H
Width& length ground:
5" X 12"
Grinding wheel capacity:
7" X 1/2" X 1-1/4"
Table to spindle center:
12"
Longitudinal table travel:
13- 1/2"

Description

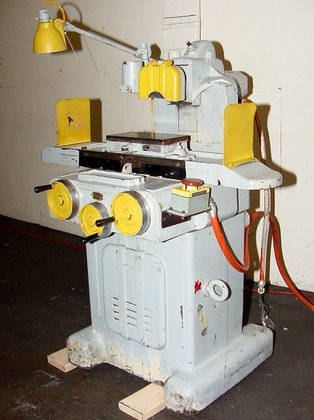

TAFT PEIRCE MODEL #1 (MADE IN USA)
"HIGH-PRECISION" HAND FEED SURFACE GRINDER
TILTING (30 DEGREES) WHEELHEAD DESIGN ***
MODEL: No. 1 S/N: 2225 NEW: 1966
WIDTH& LENGTH GROUND ........................ 5" X 12"
TABLE TO SPINDLE CENTER ............................ 12"
LONGITUDINAL TABLE TRAVEL ..................... 13- 1/2"
TABLE MOVEMENT PER REV. OF HANDWHEEL .............. 3.4"
CROSS TRAVEL ................................... 5- 1/2"
GRINDING WHEEL CAPACITY .............. 7" X 1/2" X 1-1/4"
APPROX. WEIGHT ................................ 1,500 LBS.
APPROX. DIMENSIONS ...................... 61" X 45" X 66"H
MACHINE FEATURES:
CAST IRON, HEAVILY RIBBED CONTRUCTION W/SMALL FOOTPRINT
BALL MOUNTED TABLE, ROLLER MOUNTED SADDLE & BALL TRACKED
COLUMN, PLUS BALL BEARINGS THROUGHOUT, PROVIDE FOR
EXTREMELY HIGH PRECISION CAPABILITY.
REPLACEABLE LONGITUDINAL WAYS (VEE & FLAT WAY)
CROSSFEED HAS ANTI-BACKLASH NUT ASSEMBLY
SADDLE LOCK FOR CONVENIENCE IN FORM GRINDING OPERATIONS
SADDLE IS SUPPORTED ON TWO HARDENED & GROUND FLAT STEEL
WAYS
ENTIRE SPINDLE COLUMN MOVES FOR VERTICAL SPINDLE FEED
1 H.P. TAFT PEIRCE SUPER-PRECISION SPINDLE DRIVE
LUBRICATION SYSTEM
EQUIPPED WITH:
TILTING WHEELHEAD OPTION (30 DEGREES)- THIS FACILATATES
GRINDING TO SHARP CORNERS& SHOULDER AS WELL AS FINISHING
OF SLOTS, DOVETAILS& UNDERCUTS WITH THE ANGULAR FACE
OR PERIPHERY OF THE WHEEL.
SPINDLE MOTOR IS 3/60/220-440 VOLTS
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
