Top Seller
Dahlstrom 60 x 40000 x
Location:
Holland, OH
Manufacturer:
Dahlstrom
Model:
60 x 40000 x 7
Capacity:
3 ARM @ 40,000 LB X 60" PER ARM

Specifications

Condition:
used
Stock number:
64346
New:
1981
Motor:
125-HP DRIVE
Width:
60"
Coil od:
72"
Capacity:
3 ARM @ 40,000 LB X 60" PER ARM
Push off:
HYDRAULIC
Turnstile:
2 ARM
Electrical:
46V, 60HZ, 3 PHASE
Head model:
701-RH-60
Head serial:
SL132 AND SL132A
Peeler model:
40H-60- 2024W
Snubber roll:
YES
Maximum gauge:
119
Peeler serial:
R5555
Arbor diameter:
7"
Coil car model:
MCL-40-21L TRACK MOUNT
Recoiler model:
RR-40-60-22W
Recoiler width:
66" MAXIMUM
Recoler serial:
RR13.8
Slitting heads:
RAFTED
Uncoiler model:
HD-PE-11-60-72
Coil car serial:
L267
Threading table:
HYDRAULIC TELESCOPING
Turnstile model:
TACH60-40M
Uncoiler serial:
SP799
Turnstile serial:
SP797
Arbor set up stand:
YES
Direction of travel:
LEFT TO RIGHT
Hydraulic operation:
YES
Recoiler mandrel od:
22"
Scrap chopper model:
SC-11X1
Scrap chopper serial:
SC181
Hydraulic id expansion:
20" TO 24"
Subcategory:
Slitting lines

Description

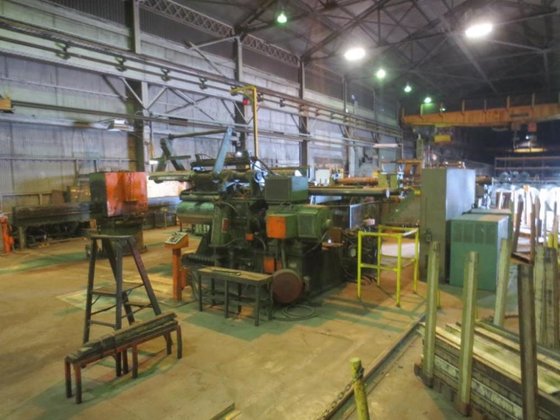

60" X 40,000-LB x 7" DAHLSTROM LOOP TYPE SLITTING LINE
NEW ............................... 1981
CONSIST OF:
TURNSTILE SERIAL .................. SP797
TURNSTILE MODEL ................... TACH60-40M
CAPACITY .......................... 3 ARM @ 40,000 LB X 60" PER ARM
COIL CAR SERIAL ................... L267
COIL CAR MODEL .................... MCL-40-21L TRACK MOUNT
UNCOILER SERIAL ................... SP799
UNCOILER MODEL .................... HD-PE-11-60-72
WIDTH ............................. 60"
COIL OD ........................... 72"
HYDRAULIC ID EXPANSION ............ 20" TO 24"
RECOILER MANDREL OD ............... 22"
MAXIMUM GAUGE ..................... .119
ELECTRICAL ........................ 46V, 60HZ, 3 PHASE
W/115V CONTROL CIRCUIT
DIRECTION OF TRAVEL ................ LEFT TO RIGHT
PEELER SERIAL ...................... R5555
PEELER MODEL ....................... 40H-60- 2024W
SLITTING HEADS ..................... RAFTED
HEAD SERIAL ........................ SL132 AND SL132A
HEAD MODEL ......................... 701-RH-60
ARBOR DIAMETER ..................... 7"
ARBOR SET UP STAND ................. YES
SCRAP CHOPPER SERIAL ............... SC181
SCRAP CHOPPER MODEL ................. SC-11X1
THREADING TABLE .................... HYDRAULIC TELESCOPING
RECOLER SERIAL ..................... RR13.8
RECOILER MODEL ..................... RR-40-60-22W
RECOILER WIDTH ..................... 66" MAXIMUM
HYDRAULIC OPERATION ................ YES
MOTOR .............................. 125-HP DRIVE
SNUBBER ROLL ....................... YES
PUSH OFF ........................... HYDRAULIC
TURNSTILE .......................... 2 ARM
