2016 Bandsaw - Horizontal RITKE
Location:
Wackersdorf, Germany
Manufacturer:
RITKE
Model:
350.270 DG
Motor:
0,37 kW
Weight:
475 kg

Specifications

Condition:
used
Year:
2016
Stock number:
1100-051231
Pump:
0,12 kW
State:
New machine
Control:
konventionell
Division:
Metal Processing
More info:
On request
Quotation:
ex warehouse
Band speed:
20 - 120 m/min
Main drive:
1,5 kW
Cutting width:
350 mm
Delivery time:
immediately
Hydraulic motor:
0,37 kW
Saw band length:
3160 mm
Cutting diameter:
270 mm
Country of origin:
Germany
Total power requirement:
1,99 kW
Height of material-table:
910 mm
Weight of the machine ca:
475 kg
Capacity 45° rectangular:
180 x 180 mm
Capacity 90° rectangular:
350 x 220 mm
Capacity 45 degrees: round:
210 mm
Capacity 90 degrees: square:
260 x 260 mm
Dimensions of the machine ca:
1730 x 770 x 1550 m

Description

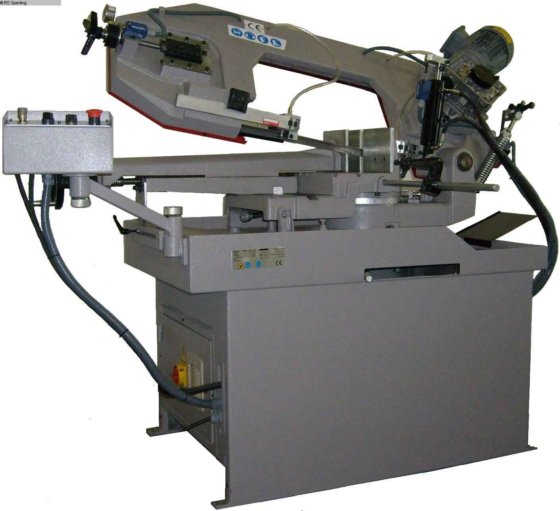

EXHIBITION MACHINE / The metal band saw 350.270 DG is a manual double
miter machine. The saw feed of the cast saw frame is infinitely variable,
adjustable from the control panel. This machine is ideally suited for fast
individual cuts in workshops and metalworking plants.
The machine has a frequency-controlled saw blade drive (infinitely variable
setting of 20 to 120 m / min), the material clamping is carried out by means
of a spindle headstock with quick-clamping device.
This machine has a steplessly adjustable swivel angle of -45 ° to + 60 °,
so that mitred cuts to the left to 45 ° and right to 30 ° are possible.
