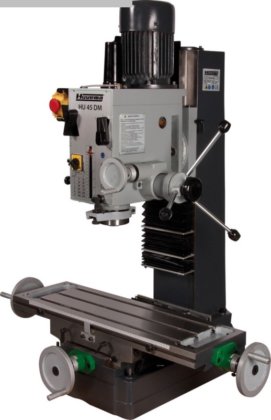

2016 Drilling and Milling M/C
Location:
Wackersdorf, Germany
Manufacturer:
Huvema boring mills
Model:
HU 45 DM-2
Control:
konventionell

Specifications

Condition:
used
Year:
2016
Stock number:
1100-021502
State:
Used machine
Control:
konventionell
Division:
Metal Processing
X-travel:
510 mm
Y-travel:
240 mm
More info:
On request
Quotation:
ab Werk
Bore depth:
130 mm
Table-size:
820 x 240 mm
Quill stroke:
130 mm
Delivery time:
on request
Turning speeds:
75-3200 U/min
Head swivability:
45 °
Spindle taper mt:
3
Country of origin:
Niederlande
Transmission ratio:
12R/12L
Total power requirement:
1,1 kW
Weight of the machine ca:
360 kg
Dimensions of the machine ca:
920 x 740 x 1000 mm
Bore capacity in steel (diameter):
32 mm
Max. distance between table and spindle-nose:
445 mm
Mx. distance bet.vert. milling head and table:
445 mm

Description

?solid column to avoid vibration
?gear wheels in oil bath
?left and right turning
?precision setting for milling depth
?with drawbar (M12)
