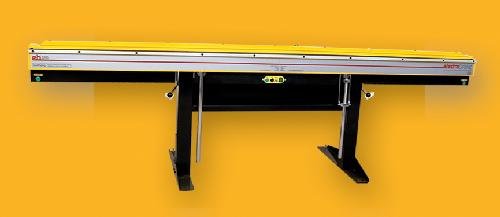

2016 Folding Machine RHTC MB3200
Location:
Wackersdorf, Germany
Manufacturer:
Rhtc
Model:
MB3200
Weight:
380 kg

Specifications

Condition:
used
Year:
2016
Stock number:
1100-101015
State:
New machine
Control:
konventionell
Division:
Metal Processing
More info:
On request
Quotation:
ab Werk
Delivery time:
on request
Chamfer lenght:
3200 mm
Plate thickness:
1,2 mm
Country of origin:
Netherlands
Distance between columns:
3200 mm
Weight of the machine ca:
380 kg
Dimensions of the machine ca:
3475 x 1005 x 400 mm
Subcategory:
Folding machine

Description

Technical specifications
* Capacity (length x thickness) [mm]: 3200 x 1,6
* Clamping force [tons]: 10
* Electricity supply: 15A
* Termal protection: 70 °C
* Foot switch: standard
* Distance between lifters [mm]: 3228
* U-Channel bends - minimal spacing [mm]: 25***
* Closed channel - minimal internal [mm]: 114 x 45***
* Z-reverse bends min. spacing [mm]: 36** / 18*
* Measurement [mm]: 3475 x 410 x 400
* Weight [kg]: 380
* Mild steel [mm]: 1,6** / 1,2*
* Aluminium medium hard [mm]: 1,6** / 1,2*
* Copper, Zinc, Brass (medium hard) [mm]: 1,6** / 1,2*
* Stainless steel [mm]: 1,0** / 0,9*
***With standard full lenght clamp bar | ** With bending beam extension bar | * Extension bar removed
