2016 Toggle Press - Double

2016 Toggle Press - Double Column RHTC TL 300 in Wackersdorf, Germany

Location:
Wackersdorf, Germany
Manufacturer:
Rhtc
Model:
TL 300

Specifications

Condition:
used
Year:
2016
Stock number:
1100-081216
State:
New machine
Stroke:
400 mm
Control:
konventionell
Division:
Metal Processing
Pressure:
300 t
More info:
On request
Quotation:
ab Werk
Feed speeds:
9 mm/min
Return speed:
15 mm/sec
Working feed:
3,8 mm/sec
Delivery time:
on request
Piston stroke:
300 mm
Tank capacity:
min 30 l
Pressing speed:
2 mm/sec
Country of origin:
Europe
Total power requirement:
10 kW
Distance between columns:
2560 mm
Weight of the machine ca:
13 t
Dimensions of the machine ca:
3,5 x 3,05 x 2,9 m
Slide adjustment -horizontal:
3000 mm
Adjustment of press crosshead:
2000 mm
Category:
Presses

Description

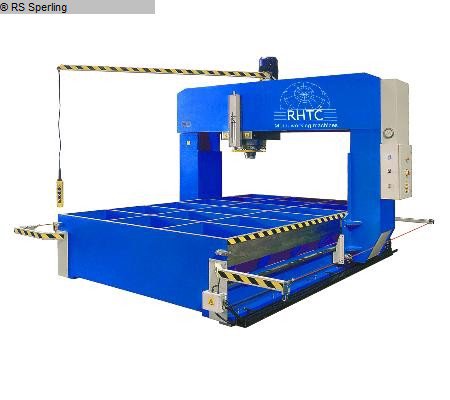

Toggle Press - Double Column RHTC TL 300
used machine
pressure: 300 t
distance between columns: 2560 mm
stroke: 400 mm
working feed: 3,8 mm/sec
piston stroke: 300 mm
: 700 mm
adjustment of press crosshead: 2000 mm
slide adjustment -horizontal: 3000 mm
tank capacity: min 30 l
feed speeds: 9 mm/min
pressing speed: 2 mm/sec
return speed: 15 mm/sec
total power requirement: 10 kW
weight of the machine ca.: 13 t
dimensions of the machine ca.: 3,5 x 3,05 x 2,9 m
