1990 Tool Room Milling Machine
Location:
Bottrop, Germany
Model:
FU 1100
Spindle Taper:
40
Control:
konventionell

Specifications

Condition:
used
Year:
1990
Stock number:
1100-022213
State:
Used machine
Control:
konventionell
Division:
Metal Processing
X-travel:
600 mm
Y-travel:
250 mm
Z-travel:
500 mm
More info:
On request
Quotation:
ab Werk
Feeds cross:
0 - 660 mm/min
Counter stay:
2
Delivery time:
immediately
Feeds vertical:
0 - 220 mm/min
Table-lowerator:
1100 x 250 mm
Digital read out:
3 - Achsen / ACU-RITE
Country of origin:
Espania
Spindle taper iso:
40
Transmission ratio:
2
Feeds - longitudinal:
0 - 660 mm/min
Total power requirement:
5 kW
Universal - milling head:
ISO 40
Weight of the machine ca:
1,5 t
Horizontal milling spindle:
3
Spindle turning speed range:
35-1800 U/min
Dimensions of the machine ca:
2,0 x 1,2 x 1,9 m
Subcategory:
Milling machines

Description

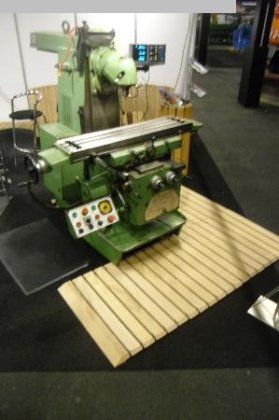

Tool Room Milling Machine - Universal LAGUN / IBERIMEX FU 1100
used machine
x-travel: 600 mm
y-travel: 250 mm
z-travel: 500 mm
spindle taper ISO: 40
table-lowerator: 1100 x 250 mm
spindle turning speed range: 35-1800 U/min
transmission ratio: 2
feeds - longitudinal: 0 - 660 mm/min
feeds cross: 0 - 660 mm/min
feeds vertical: 0 - 220 mm/min
total power requirement: 5 kW
weight of the machine ca.: 1,5 t
dimensions of the machine ca.: 2,0 x 1,2 x 1,9 m
Digital Read Out: 3 - Achsen / ACU-RITE
Universal - Milling Head: ISO 40
Horizontal Milling Spindle: 3
Counter Stay: 2
Horizontal Milling Device:
Coolant System:
Operating Instructions:
