2003 GIARDINA DUALTECH 401/D SPRAY

2003 GIARDINA DUALTECH 401/D SPRAY FINISHING LINE [FS-010587] in United States

Location:
United States
Manufacturer:
GIARDINA
Model:
DUALTECH 401/D

Specifications

Condition:
used
Year:
2003
Recnum:
FS-010587
Comments:
High quality Giardina Line, checked by a Company specializing in Finishing equipment
Machtype:
SPRAY FINISHING LINE
Condition info:
(5-7) Cleaned and checked [7]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
650000

Description

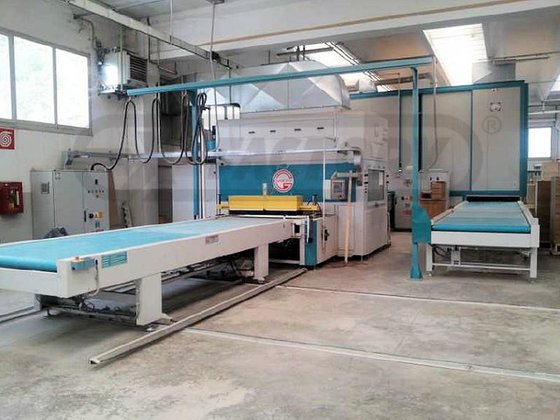

GIARDINA DUALTECH 401/D Automatic Spray Finishing Line:Complete Automatic GIARDINA DUALTECH 401/D Finishing Line for Water and Solvent based Stain, Clear and Pigmented Sealer and Topcoat finishes.The entire line is in good condition, cleaned and checked; Optionally at an additional price (see below) the units can be fully reconditioned/refurbished with a guarentee.Shown pictures are actual pictures of the line not yet reconditioned/refurbished.The Complete Line consists of:Position 1: GIARDINA, Loading belt conveyor.Position 2: GIARDINA, model DUALTECH 401/D. Automatic reciprocating Spray Machine.Position 3: GIARDINA, Motorized roller conveyor.Position 4: GIARDINA, Motorized roller conveyor.Position 5: GIARDINA, model GVC-3M-50. Vertical Drying Oven.Position 6: GIARDINA, Motorized belt conveyor.Position 7: GIARDINA, Motorized belt conveyor.General Line Specifications: Average Line speed: 4 - 5 MPM (13 - 16 FMP) and Heating Source: Hot Water.Equipment Specifications:Position 1: GIARDINA, Loading belt conveyor.

-- Conveyor installed on rails and wheels.

-- Cross transfer movement controlled by motor.

-- Adjustable feed speed controlled by inverter.

-- Length 5,100 mm (200").

-- Installed power: 0,37 kW.Position 2: GIARDINA, model DUALTECH 401/D. Automatic reciprocating Spray Machine.

-- In-feed roller conveyor with panel reading/detection 60-cell photo diode bar to monitor and regulate spray application, further maximizing application transfer effeciency.

-- Spinning de-dusting blowers with sectors at the entry of the machine.

-- (2) Reciprocating trolleys with spray gun supports, adjustable speed, providing a consistent speed and pattern across entire conveyor width. - Each trolley to carry (4) adjustable guns on each head (8 guns total).

-- Two (2) coating circuits, suitable for solvent and water based coatings.

-- Motorized height adjustments of spray gun supports.

-- Spray guns are independently adjustable in inclination; manual adjustment.

-- Through Feed Conveyor: Max. working width of 1,300 mm (51"), variable speed adjustable by means of an inverter.

-- Synthetic Belt Conveyor: ring-closed by means of "overlapped" joint and with solvent resistent surface treatment.

-- Features: Total recovery of the lacquer deposited on the belt and cleaning of the belt with the possibility to reuse it in the spraying circuit. - Rapid repositioning of the conveyor belt system thanks to the special design of the frame.

-- Air exhaust system and separation of the solid content from the air by means of two (2) suction boxes located on the two sides of the conveyor, equipped with high effeciency twin Dry-Filters. The filtered air is exhausted to the outside by means of a centrifugal fan.

-- Enclosure Booth made with structural irons and coated sheet steel panels. The Booth is equipped with an helical Air Supply Fan, pressurizing the booth with air. The ambient air is heated and filtered. Heating battery to be fed by Hot Water (Boiler not included
