Vacuum truck

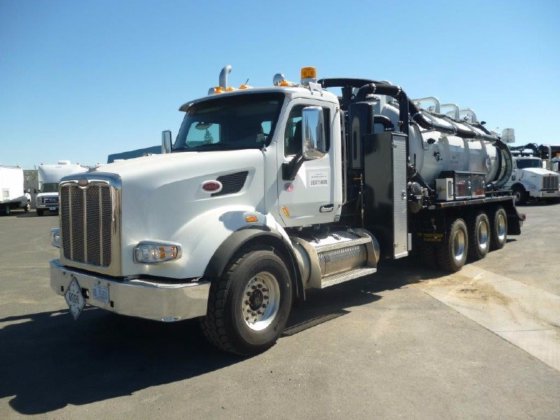

CUSCO 5327 HYDRO-EXCAVATOR UNIT, EQ# 8783, to meet all requirements Section VIII Division 1 ASME Boiler and Pressure Vessel Code, National Board Registered, tanks to be designed and constructed to DOT Specifications TC 407/412 Including Boom with the following specifications: TANK CAPACITY: 3000 USG + 3% Outage OPERATING TEMPERATURE: -20 to 200 degrees F BLOWER SPECIFICATIONS: Roots DVJ 1021 Blower 5184 CFM free air rating, 4100 CFM @ 18"Hg, 27"Hg maximum vacuum HYDRAULIC DUMP SYSTEM: Full-length hydraulic dump sub-frame with 20 ton, double acting dump cylinder, rear dump pivot assembly and safety brace. HYDRAULIC CONTROLS: 3-spool valve body for control of vibrator, rear door and hydraulic dump. Hydraulic pressure gauge on valve body. WATER PUMP DRIVE: Water pump to be driven via load sensing hydraulic system with adjustable pressure and speed controls. Water pump operation (off and on) from wireless pendant controls. WASH SYSTEM OPERATION: Wash system have dedicated steam hose reel and hot water hose reel. Wash to be set-up to run one or both hose reels at the same time for hot water only, not steam. Water system to be set to maximum 3000 psi and 20 GPM. Note water pump to operate at same time as blower. HOT WATER SYSTEM: 980,000 BTR/hr burner with steam kit and 3000 Watt 110 volt inverter with additional outlet in burner cabinet. Diesel fuel filter system with water separator. Water supplied from wash system. Burner mounted in heated cabinet, exhaust stack for burner. Glycol flush tank included for winterizing system c/w air purge system. BOOM: 8 Cusco TC 407/412 hydraulic boom assembly mounted rear 270 degree rotation with 25 reach, 6-way pendant control (up/down, rotation, extension), 8 suction hose with bandlock hose fitting. 6 SS Kamlok and cap for easy access for cleaning and a 6 air operated vent valve is to be installed in the blower piping, close to the blower, to the vent the tank instead of isolating the boom. Boom isolation valve to be controlled via manual air switch located near control panel. Vent valve control to be on boom pendants: Note:1. Hydraulic boom controls, mounted on boom, to be protected from damage due to tree branches passing over top of truck. 2. Boom hose to be attached to boom at base with Bandlok fitting for easy removal and replacement in the field. INSTALLATION: Complete system installed on a 2013 Peterbelt 567 Tri-Drive Chassis, Cummins ISX 15 with 500 HP and Eaton Fuller RTLO16918B 18-Speed Manual Transmission
