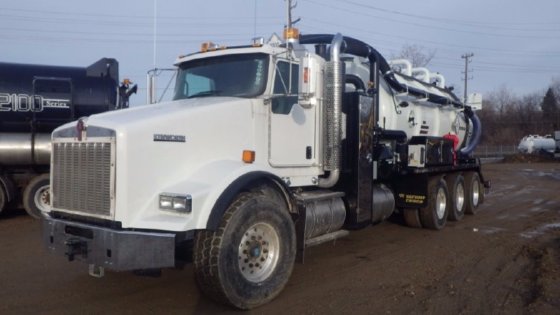

CUSCO DOT DURAVAC 820 VACUUM UNIT, EQ# 8402 INSTALLATION: Complete system installed on a 2014 Kenworth T800, Cummins ISX 15, 500HP, Eaton Fuller RTLO 16918B TANK CAPACITY: 4400 USG + 3% Outage OPERATING TEMPERATURE: -20 to 200 degrees F REAR DOOR: Hydraulic full opening rear door assembly with 6 heavy duty wing clamps, neoprene rubber rear door gasket, double acting hydraulic cylinder and safety brace CYCLONE: High capacity 20 diameter cyclone assembly with 12 diameter drop box with bottom mounted clean out door, and heated 2 brass gate valve, Kamlok and cap. Cyclone installed on front of head of tank curbside. SILENCERS: 6" intake and exhaust silencer with exhaust line BLOWER SPECIFICATIONS: Hibon VTB-820, 1400 CFM free air rating, 1100 CFM @ 18"Hg, 27"Hg maximum vacuum. DRIVE: Hydraulically driven from air shift PTO mounted on transmission with remote mount hydraulic pump, motor and oil cooler. HYDRAULIC DUMP SYSTEM: Full length hydraulic dump sub-frame with 20 ton Mailhot single acting dump cylinder, rear dump pivot assembly and safety brace. HYDRAULIC CONTROLS: 3-spool valve body for control of blower/vibrator, rear door and hydraulic dump located on the driverside of unit near control panel TOOLBOX: (2) Western style toolbox assembly with lock, rain lip, gasket, and greased hinges with Polished SS doors. One (1) mounted on passenger side of unit, one (1) 72 toolbox with two (2) side swing doors mounted on driver s side side tray spaced up 1 from top of side tray for easy cleaning. PAINTING: The entire tank and body of the vacuum system shall be sandblasted and primed with two (2) coats of primer and painted with two (2) coats of single stage Sherwin Williams paint. Please note there may be an additional cost for base coat clear coat cab matches in the event that your proposed paint color cannot be matched to a Sherwin Williams single stage paint code.
