Top Seller
100 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$19,500 USD
Manufacturer:
Pressmaster
Model:
RTP-100T
Capacity:
100 TONS
Stroke:
12"

Specifications

Condition:
used
Stock number:
150371
-asc:
ADJUSTABLE STROKE CONTROL C/W FOOT PEDAL-ELECTRIC
-secg:
FRONT AND BACK SAFETY GUARD.
Stroke:
12"
Age info:
New
Motor specs:
10 HP, 230/460 VOLT, THREE PHASE
Return speed:
24 INCH/MIN
Table travel:
24"
Pressing speed:
20 INCH/MIN
Rated capacity:
100 TONS
Cylinder bore size:
8"
Floor to table top:
26"
Depth between posts:
13-1/4"
Maximum ram to table:
32"
Width between uprights:
48"

Description

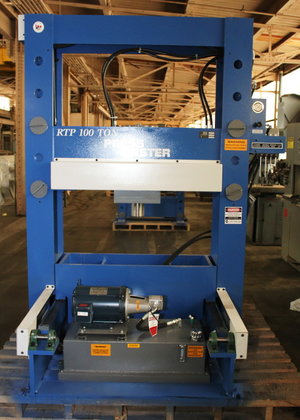

100 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED
STRAIGHTENING PRESS
RATED CAPACITY .............................. 100 TONS
WIDTH BETWEEN UPRIGHTS ...................... 48"
DEPTH BETWEEN POSTS ........ ................ 13-1/4"
MAXIMUM RAM TO TABLE ........................ 32"
STROKE ... .................................. 12"
TABLE TRAVEL ................................ 24"
FLOOR TO TABLE TOP .......................... 26"
CYLINDER BORE SIZE .......................... 8"
PRESSING SPEED .............................. 20 INCH/MIN
RETURN SPEED ................................ 24 INCH/MIN
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:
-VARIABLE RAM SPEED IS FINGER TIP CONTROLLED THE MORE
THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS
ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL
THE PROPER SPEED FOR THE TASK.
-PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE
REQUIRED
-ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
PRESSING ACTION.
-HYDRAULIC POWERED MOVABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF HEAVY WORKPIECES.
-HYDRAULIC POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK.
-HYDRUALIC POWERED LIFT FOR VERTICAL DISPLACEMENT OF HEAD AND CYLINDER.
-OPEN SIDES TO FACILITATE WORK ON LONG PIECES.
-PANEL MOUNTED GLYCERINE FILLED GAUGE.
-SAFETY VALVE PROTECTS AGAINST OVERLOADS.
-FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO
ADAPT THE PRESS TO A SPECIFIC JOB.
-LOW SPEED. QUIET OPERATION.
-HIGH-QUALITY LOW-SPEED BALDOR MOTOR.
-15 GALLON OIL RESERVOIR.
OPTIONS AVAILABLE:
-ASC: ADJUSTABLE STROKE CONTROL C/W FOOT PEDAL-ELECTRIC
SOLENOID VALVE AND PRESSURE REGULATOR.
-SECG: FRONT AND BACK SAFETY GUARD.
