Top Seller
100 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$20,950 USD
Manufacturer:
Pressmaster
Model:
HFBP-100/12 XWMWH
Capacity:
100 TONS
Stroke:
12"

Specifications

Condition:
new
Stock number:
149688
Bore:
8"
Power:
10 HP 3 PHASE
Press:
20 IPM
Width:
102"
Bore 2:
3"
Height:
102"
Length:
54"
Return:
26 IPM
Stroke:
12"
Weight:
4,000#
Press 2:
136 IPM
Capacity:
100 TONS
Return 2:
244 IPM
Stroke 2:
20"
V blocks:
$400
Capacity 2:
12 TONS
Foot pedal:
$3,500
Front safety guard:
$1,000
18 inch stroke cylinder:
$800
24 inch stroke cylinder:
$1,200
Max dist. from bed to ram:
33"
Dist. between posts (f to b):
13"
Dist. between posts (r to l):
54"

Description

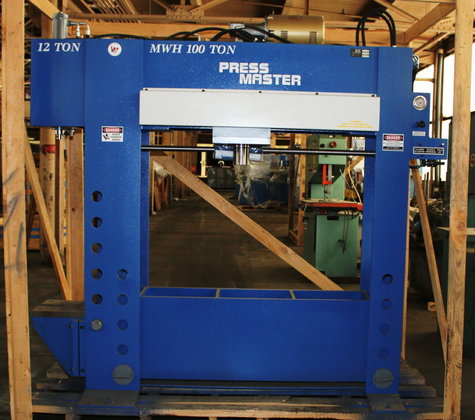

COMBINATION 100 TON H-FRAME PRESS
& 12 TON BROACH PRESS
EXTRA WIDE w/MOVABLE WORKHEAD
MODEL HFBP-100/12 XWMWH
NEW-IN STOCK FOR IMMEDIATE DELIVERY
SPECIFICATIONS
POWER................................ 10 HP 3 PHASE
DIMENSIONS
LENGTH.............................. 54"
WIDTH............................... 102"
HEIGHT.............................. 102"
WEIGHT............................... 4,000#
H FRAME SPECS
CAPACITY............................. 100 TONS
BORE................................. 8"
STROKE............................... 12"
RAM SPEED
PRESS............................... 20 IPM
RETURN.............................. 26 IPM
DIST. BETWEEN POSTS (R TO L)......... 54"
DIST. BETWEEN POSTS (F TO B)......... 13"
MAX DIST. FROM BED TO RAM ........... 33"
BROACH SPECS
CAPACITY............................. 12 TONS
BORE................................. 3"
STROKE............................... 20"
RAM SPEED
PRESS............................... 136 IPM
RETURN.............................. 244 IPM
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS
STANDARD FEATURES
ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
OPEN SIDES TO FACILITATE WORK ON LONG PIECES
FLAT RIM NOSE
CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS
TO A SPECIFIC JOB
QUALITY BALDOR MOTOR, LOW SPEED
LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION
SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT
POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION
THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE
PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS
ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR
TO CONTROL THE PROPER SPEED FOR THE TASK
HIGH CAPACITY 15 GAL. HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
STANDARD FEATURES 12 TON
PRESSURE REGULATOR
SPEED CONTROL
AVAILABLE OPTIONS 100 TON
V BLOCKS .......................... $400
FRONT SAFETY GUARD ................ $1,000
FOOT PEDAL ........................ $3,500
18 INCH STROKE CYLINDER ........... $800
24 INCH STROKE CYLINDER ........... $1,200
10 HP 230 VOLTS 1 PHASE 41 AMPS ... Call
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINE IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
