Top Seller
1998 49" X Axis 35"
Location:
Harrison, NJ
Model:
HC-800
Spindle Taper:
50 TAPER

Specifications

Condition:
used
Year:
1998
Serial number:
HC80041
Stock number:
152515
Cutting feed:
0.01 TO 140 IPM
Spindle motor:
20 HP
Spindle taper:
50 TAPER
X-axis travel:
49" (1250 mm)
Y-axis travel:
35" (900 mm)
Z-axis travel:
31.5" (800 mm)
Table indexing:
1 DEGREE
Table load max:
2,400 LBS
Spindle speed range:
20 - 4,000 RPM
Rapid traverse x,y,z:
480 IPM
Approx machine weight:
33,000 LBS
Atuomatic tool changer:
40 POSITIONS
Approx machine dimensions:
250" X 161" X 128" TALL
Spindle center to table top:
2"-37.4" (50mm-950mm)
Spindle nose to table center:
9.8"-41.3" (250-1050mm)
Subcategory:
Cnc machines

Description

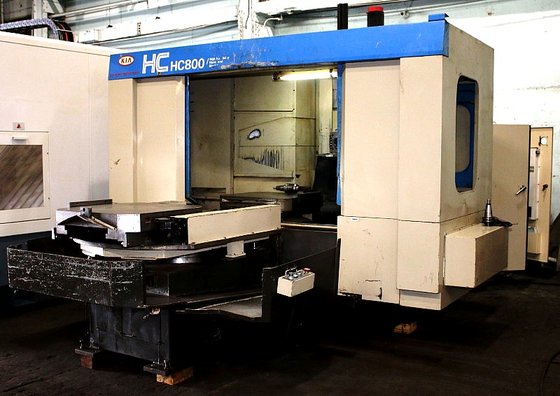

KIA HORIZONTAL MACHINING CENTER
S/N:HC80041, MFG:1998
MACHINE SPECIFICATIONS:
X-AXIS TRAVEL...................... 49" (1250 mm)
Y-AXIS TRAVEL...................... 35" (900 mm)
Z-AXIS TRAVEL...................... 31.5" (800 mm)
SPINDLE CENTER TO TABLE TOP........ 2"-37.4" (50mm-950mm)
SPINDLE NOSE TO TABLE CENTER....... 9.8"-41.3" (250-1050mm)
TABLE WORKING SURFACE (2 PALLETS).. 31.5" x 31.5" (800mm x 800mm)
TABLE LOAD MAX..................... 2,400 LBS
TABLE INDEXING .................... 1 DEGREE
SPINDLE MOTOR...................... 20 HP
SPINDLE TAPER...................... 50 TAPER
SPINDLE SPEED RANGE ............... 20 - 4,000 RPM
ATUOMATIC TOOL CHANGER............. 40 POSITIONS
CUTTING FEED....................... 0.01 TO 140 IPM
RAPID TRAVERSE X,Y,Z............... 480 IPM
APPROX MACHINE WEIGHT.............. 33,000 LBS
APPROX MACHINE DIMENSIONS.......... 250" X 161" X 128" TALL
EQUIPPED WITH:
*
FANUC 15M-B
CONTROL
* 1 DEGREE INDEXING
* 2 PALLET AUTOMATIC PALLET SYSTEM
* LARGE ASSORTMENT OF #50 TAPER TOOL HOLDERS
* TWO TOMBSTONES
* 40 POSITION AUTOMATIC TOOL CHANGER
* TWO SPEED GEARED HEAD
* CHIP REMOVAL SYSTEM
* SPINDLE OIL COOLING SYSTEM
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
