Top Seller
15.75" Chuck 3.75" Hole Warner
Location:
Harrison, NJ
Price:
$4,500 USD
Spindle Nose:
11"

Specifications

Condition:
used
Stock number:
153396
Square:
2-7/16"
Hexagon:
3"
Age info:
1940'S
Approx weight:
8,500 LBS.
Long feeds (16):
004 - .149 IPR
Cross feeds (16):
0022 - .073 IPR
Approx dimensions:
145"x 71"x 65"
To face of turret:
51-1/2"
Bar capacity round:
3-1/2"
Max swing over bed:
21-1/2"
(12) spindle speeds:
17 - 460 RPM
Hole through spindle:
3-3/4"
Max cross slide travel:
13"
Max. over carriage guard:
20"
Hexagon turret feeds (16):
004 - .149 IPR
Spindle nose, type a, size:
11"
Max swing over carriage horn:
16-3/4"
Length turned w/ hexagon turret:
36-1/2"
Subcategory:
Turret lathes
Subcategory 2:
Toolroom machines

Description

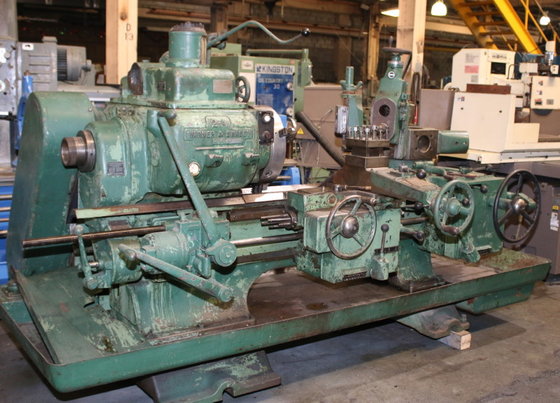

2A WARNER & SWASEY SADDLE-TYPE TURRET LATHE
MODEL: M-510, NEW: 1940'S
SPECIFICATIONS:
MAX SWING OVER BED .................... 21-1/2"
MAX. OVER CARRIAGE GUARD .............. 20"
MAX SWING OVER CARRIAGE HORN .......... 16-3/4"
MAX DISTANCE, SPINDLE NOSE
TO FACE OF TURRET .................. 51-1/2"
SPINDLE NOSE, TYPE A, SIZE ............ 11"
HOLE THROUGH SPINDLE .................. 3-3/4"
BAR CAPACITY ROUND .................... 3-1/2"
SQUARE ................................ 2-7/16"
HEXAGON ............................... 3"
LENGTH TURNED w/ HEXAGON TURRET ....... 36-1/2"
END OF SPINDLE TO FACE OF HEX. TURRET.. 51-1/2"
LONG TRAVEL OF CROSS SLIDE CARRIAGE.... 44"
MAX CROSS SLIDE TRAVEL ................ 13"
(12) SPINDLE SPEEDS ................... 17 - 460 RPM
LONG FEEDS (16) ....................... .004 - .149 IPR
CROSS FEEDS (16) ...................... .0022 - .073 IPR
HEXAGON TURRET FEEDS (16) ............. .004 - .149 IPR
APPROX WEIGHT ......................... 8,500 LBS.
APPROX DIMENSIONS ..................... 145"x 71"x 65"
EQUIPPED WITH:
- 3-JAW CHUCK
- HARDENED BED WAYS
- FRONT CARRIAGE WITH BUILT-IN SQUARE TOOLPOST
- POWER RAPID TRAVERSE TO BOTH HEXAGON TURRET AND FRONT
CARRIAGE
- MISCELLENEOUS TURRET TOOLING
- SELF-CONTAINED COOLANT SYSTEM AND PAN BED
- 7-1/2 HORSE POWER DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
