Top Seller
1966 35 Ton 2.5" Stroke
Location:
Harrison, NJ
Price:
$6,950 USD
Manufacturer:
Perkins presses
Model:
450-BM
Capacity:
35 TONS
Stroke:
2-1/2"

Specifications

Condition:
used
Year:
1966
Serial number:
33189
Stock number:
153980
Spm:
VARIABLE
Shank:
1-1/2"
Stroke:
2-1/2"
Throat:
8"
Weight:
4,200#
Rated capacity:
35 TONS
Bolster thickness:
2"
Approx. dimensions:
26" L-R X 48" F-B X 85" H
Shut height (s.d.a.u.):
9-3/4" TO BED
Shut height )s.d.a.u.):
7-3/4" TO BOLSTER

Description

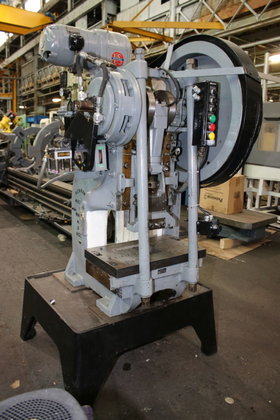

35 TON PERKINS GAP FRAME PRESS
MODEL 450-BM S/N 33189 NEW 1966
RATED CAPACITY ............................. 35 TONS
STROKE ..................................... 2-1/2"
SHANK ...................................... 1-1/2"
SHUT HEIGHT (S.D.A.U.) ..................... 9-3/4" TO BED
SHUT HEIGHT )S.D.A.U.) ..................... 7-3/4" TO BOLSTER
BOLSTER THICKNESS .......................... 2"
BED AREA .............(FB X LR)............. 14" X 26"
THROAT ..................................... 8"
SPM ........................................ VARIABLE
EQUIPPED WITH:
- DUAL PALM BUTTONS
- AIR CLUTCH & BRAKE
- CONTINOUS / INCH / SINGLE OPERATION MODES
- MOUNTED ON SPEED BASE
- US MOTORS VARIABLE SPEED DRIVE
- TIE RODS
APPROX. DIMENSIONS: 26" L-R X 48" F-B X 85" H
WEIGHT: 4,200#
