Top Seller
40" Swing Birmingham HTL-40x/W6 ENGINE
Location:
Harrison, NJ
Manufacturer:
Birmingham lathes
Model:
HTL-40x/W6
Spindle Bore:
130mm (5-1/8")
Spindle Nose:
A2-15

Specifications

Condition:
new
Stock number:
154142
Note:

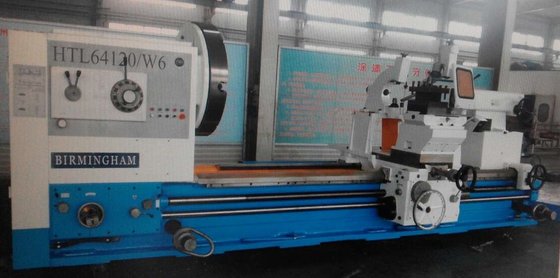

similar, larger model HTL-64x/W6 photographed.
Age info:
NEW
Spindle nose:
A2-15
Width of bed:
755mm (29-3/4")
Main motor power:
22 KW (30 HP)
Cross rapid speed:
1870mm/min. (73-3/4"/min.)
Inch thread range:
3/8-28tpi, 31 kinds
Rapid motor power:
1.5 KW (2 HP)
Coolant pump power:
0.125 KW (0.15 HP)
Pitch thread range:
1-56 D.P., 25 kinds
Tool shank section:
45 x 45mm
Metric thread range:
1-120mm, 44 kinds
Module thread range:
0.5-60mm, 45 kinds
Per division of dial:
0.05mm (0.002")
Spindle bore diameter:
130mm (5-1/8")
Taper of spindle bore:
metric no.140
Tool post swing angle:
90 degrees
Top slide rapid speed:
935mm/min. (36-3/4"/min.)
Transverse feed range:
0.05-6mm/r, 56 kinds
Range of spindle speed:
3.78-378rpm, 21 kinds
Longitudinal feed range:
0.1-12mm/r, 56 kinds
Up tool post feed range:
0.025-3mm/r
Longitudinal rapid speed:
3740mm/min. (147-1/2"/min.)
Max. travel of top slide:
300mm (12")
Max. weight of work piece:
6000 Kg (13,200 lbs.)
Taper of tailstock sleeve:
morse no.6
Max. travel of cross slide:
635mm (25")
Travel of tailstock sleeve:
300mm (12")
Diameter of tailstock sleeve:
140mm (5-1/2")
Max. swing diameter over bed:
1020mm (40")
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

NEW BIRMINGHAM HORIZONTAL LATHE
MODEL: HTL-40x/W6
Note: similar, larger model HTL-64x/W6 photographed.
SPECIFICATIONS:
Capacity
Max. swing diameter over bed ..................... 1020mm (40")
Max. swing diameter over cross slide ............. 635mm (25")
Width of bed ..................................... 755mm (29-3/4")
Max. length of work piece (available capacities listed; must specify one*)
1000mm (40") 5000mm (200") 10,000mm (400")
1500mm (60") 6000mm (240") 11,000mm (440")
2000mm (80") 7000mm (280") 12,000mm (480")
3000mm (120") 8000mm (320") 14,000mm (560")
4000mm (160") 9000mm (360") 16,000mm (640")
Max. weight of work piece ........................ 6000 Kg (13,200 lbs.)
Spindle
Spindle nose ..................................... A2-15
Spindle bore diameter ............................ 130mm (5-1/8")
Taper of spindle bore ............................ metric no.140
Range of spindle speed ........................... 3.78-378rpm, 21 kinds
Feeds
Longitudinal feed range .......................... 0.1-12mm/r, 56 kinds
Transverse feed range ............................ 0.05-6mm/r, 56 kinds
Up tool post feed range .......................... 0.025-3mm/r
Metric thread range .............................. 1-120mm, 44 kinds
Inch thread range ................................ 3/8-28tpi, 31 kinds
Module thread range .............................. 0.5-60mm, 45 kinds
Pitch thread range ............................... 1-56 D.P., 25 kinds
Tool post
Tool shank section ............................... 45 x 45mm
Tool post swing angle ............................ 90 degrees
Max. travel of top slide ......................... 300mm (12")
Max. travel of cross slide ....................... 635mm (25")
Travel of top slide and cross slide
per division of dial ............................ 0.05mm (0.002")
Max. travel of carriage (corresponds with max. length of work piece)
950mm (37-3/8") 4950mm (194-7/8") 9950mm (391-3/4")
1450mm (57") 5950mm (234-1/4") 10,950mm (431-1/8")
1950mm (76-3/4") 6950mm (273-5/8") 11,950mm (470-1/2")
2950mm (116-1/8") 7950mm (313") 13,950mm (549-1/4")
3950mm (155-1/2") 8950mm (352-3/8") 15,950mm (628")
Longitudinal rapid speed ......................... 3740mm/min. (147-1/2"/min.)
Cross rapid speed ................................ 1870mm/min. (73-3/4"/min.)
Top slide rapid speed ............................ 935mm/min. (36-3/4"/min.)
Tailstock
Taper of tailstock sleeve ........................ morse no.6
Travel of tailstock sleeve ....................... 300mm (12")
Diameter of tailstock sleeve ..................... 140mm (5-1/2")
Motors
Main motor power ................................. 22 KW (30 HP)
Rapid motor power ................................ 1.5 KW (2 HP)
Coolant pump power ............................... 0.125 KW (0.15 HP)
STANDARD ACCESSORIES:
40" 4 jaw chuck
Steady rest, from 2-3/4" to 19" (not available for 40"/60" length capacities)
(1 pc for 80" to 320" length capacities; 2 pcs for 360" to 480"; 3 pcs for 560"/640")
Follow rest, f
