Location:
Contamine-sur-Arve, France
Manufacturer:
Mazak lathes
Model:
QTN 100
Distance between Centers:
310 [mm]
Spindle Nose:
A2-5

Specifications

Condition:
used
Year:
2003
Stock number:
8058
Cnc:
Mazatrol FUSION 640T
Bar loader:
LNS MINI-SPRINT S2
X/z stroke:
140/320 [mm]
Collet chuck:
48F
Spindle nose:
A2-5
Type of cone:
MT3
Spindle power:
11 [kW]
Number of axes:
2
Spindle speeds:
6000 [rpm]
Supply voltage:
400 [V]
Max. bar diameter:
51 [mm]
Max. chuck diameter:
150 [mm]
Number of positions:
12
Counter-spindle type:
Automatic
Max. turning diameter:
280 [mm]
Distance between centers:
310 [mm]
Subcategory:
Turning
Subcategory 2:
Cnc lathe 2 axis

Description

TECHNICAL DETAILS
Number of axes : 2
MAIN SPINDLE
Spindle nose : A2-5
Spindle power : 11 [kW]
Spindle speeds : 6000 [rpm]
Max. bar diameter : 51 [mm]
Max. turning diameter : 280 [mm]
Max. chuck diameter : 150 [mm]
TURRET
Number of positions : 12
X/Z stroke : 140/320 [mm]
TAILSTOCK
Counter-spindle type : Automatic
Type of cone : MT3
Distance between centers : 310 [mm]
POWER SUPPLY
Supply voltage : 400 [V]

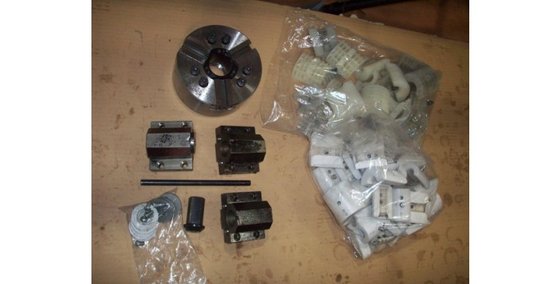

EQUIPMENT
CNC : Mazatrol FUSION 640T
Coolant tank
Chips conveyor
Tool probe
Parts catcher
Bar loader : LNS MINI-SPRINT S2
Collet chuck : 48F
