TM Engineering Magnetic Separator in
Location:
Burnaby, Canada
Manufacturer:
TM Engineering
Model:
Magnetic Separator

Specifications

Condition:
new
Country:
Canada
Quantity:
1
Category group:
Other
Subcategory:
Lab equipment
Subcategory 2:
Magnetic separator

Description

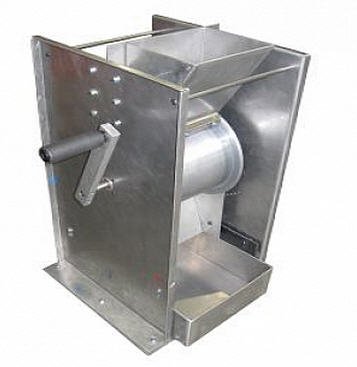

Lightweight bench top Magnetic Separator for bench top testing work in laboratories, exploration camps and placer gold operations. Extremely light weight (approx 20 pounds) Aluminum construction 2 sample receiving containers. 2kg mass flow feed hopper Adjustable magnetic position lever Supplied with brush for drum cleaning 3 gauges for coarseness setting This free standing concurrent single drum dry magnetic separator comes complete with a two kilogram mass flow feed hopper and two sample containers. The six inch diameter magnetic drum contains Neodymium rare earth magnets which have high intensity 13,200 gauss field strength. The magnetic drum discharge has a dust shield/product position splitter over the sample containers to minimize product losses. Suitable for samples with particle sizes in the 10 to 200 mesh (200 to 75 microns). This unit also comes with a magnetic position lever and hand crank for the magnetic drum. Alternatively, a DC drive can be provided
