9-roll bar straightening machine KOCKS

9-roll bar straightening machine KOCKS 9-Walzen / 9-roll in Willich, Germany

Location:
Willich, Germany
Manufacturer:
KOCKS
Model:
9-Walzen / 9-roll

Specifications

Condition:
used
Stock number:
1132-103381S
Speed:
25, 50, 75 m/min
State:
Used machine
Control:
konventionell
Age info:
ca. 1966/approx. 66
Division:
Metal Processing
More info:
On request
Quotation:
free on truck
Bar length:
3000 - 8000 mm
Working area:
18 - 90 mm
Delivery time:
to be discussed
Country of origin:
Germany

Description

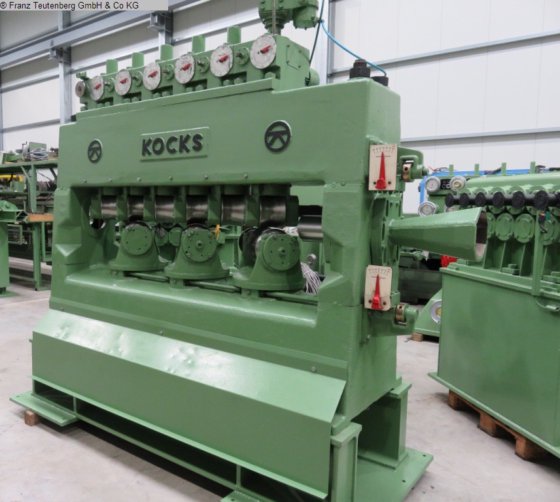

9 - ROLL STRAIGHTENING MACHINE with inclined rollers, for tubes and bars
Constr. KOCKS
New-in: approx. 1966
Working range Ø: 18 - 90 mm
Wall thickness: 1 - 11 mm
Bar / tube length: 3000 - 8000 mm
Straightening speed: 25, 50, 75 m/min
The machine is equipped with:
3 straightening rollers and 6 counter rollers, all driven.
Main motor: 2 x 20 kW, 380 V, 50 Hz
Auxiliary motors: 10 kW
Complete with:
=============
In and outlet roller conveyors, electrical cabinet, command desk
and divers spare parts.
Total weight: approx. 17 to.
