1986 H. KALLESOE K 12

1986 H. KALLESOE K 12 EL CASE CLAMP (SEMI-AUTOMATIC) [CC-010874] in United States

Location:
United States
Price:
$9,700 USD
Manufacturer:
Case IH
Model:
K 12 EL

Specifications

Condition:
used
Year:
1986
Recnum:
CC-010874
Comments:
This KALLESOE Case Clamp is simple & ready to go to work!
Machtype:
CASE CLAMP (SEMI-AUTOMATIC)
Condition info:
(3-6) Good condition [5]
Current status:
Active
Elect./voltage:
220 V, 60 Cy, 3 Ph.
Appr. repl. cost:
22500

Description

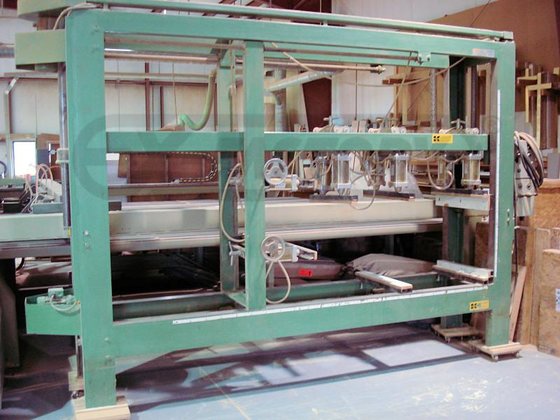

H. KALLESOE K 12 EL Case Clamp:

-- Specifications:Working length 27.5" - 88.5" (700 - 2,250 mm); working height 11.8" - 49.2" (300 - 1,250 mm); working width 25.5" (650 mm).

-- Vertical & Horizontal Pressure Beams:Vertical & horizontal pressure beams are adjusted by means of (3) 220 v, 3 phase motors w/automatic locking; includes a total of (5) clamps with (2) pressure cylinders per clamp; each cylinder 4" (100 mm) dia with a 3.5" (90 mm) stroke.

-- Vertical pressure beam:(2) Clamps / (4) pressure cylinders with quick and easy manual positioning of the clamps by means of individual hand cranks mounted to a rack system.

-- Horizontal pressure beam:(3) Clamps / (6), pressure cylinders that ride on bearings for quick and easy manual positioning.

-- Independent pressure control: Vertical & Horizontal clamps are adjustable from 4 - 10 bars of air pressure with a max. clamping force of up to 2,000 Lbs on each of the (5) clamps.
