1984 6" Width 12" Length
Location:
Harrison, NJ
Model:
612 VALUEMASTER
Weight:
1,225 LBS.

Specifications

Condition:
used
Year:
1984
Serial number:
523-612-3482
Stock number:
154147
Maximum:
18"
Cross travel:
7"
Width & length ground:
6" X 12"
Approx. machine weight:
1,225 LBS.
Std. grinding wheel size:
8" X 1/2"
To top of table, minimum:
3-1/4"
Longitudinal table travel:
20"
Approx. machine dimensions:
36" X 36" X 70"
Height of work ground w/7" wheel:
15"

Description

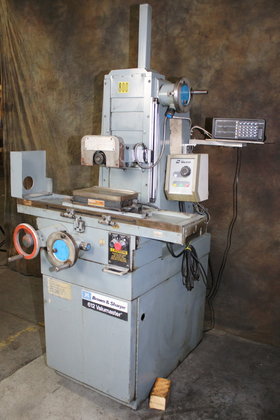

6" X 12" BROWN & SHARPE (MADE IN USA)
"SUPER-PRECISION" HAND FEED SURFACE GRINDER
WITH "SONY" 2-AXIS DRO
MODEL: 612 VALUEMASTER S/N: 523-612-3482 NEW: 1984
WIDTH & LENGTH GROUND ........................ 6" X 12"
HEIGHT OF WORK GROUND W/7" WHEEL .................. 15"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ..................... 3-1/4"
MAXIMUM ........................ 18"
LONGITUDINAL TABLE TRAVEL ......................... 20"
CROSS TRAVEL ....................................... 7"
CROSS HANDWHEEL GRADUATED TO READ TO ........ 0.0002"
CROSS, FINE FEED KNOB GRADUATED TO READ TO .. 0.0001"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE .......... 15-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ..... 0.0002"
VERTICAL, FINE FEED KNOB GRADUATED TO READ TO 0.0001"
STD. GRINDING WHEEL SIZE .................... 8" X 1/2"
APPROX. MACHINE WEIGHT ..................... 1,225 LBS.
APPROX. MACHINE DIMENSIONS ............ 36" X 36" X 70"
EQUIPPED WITH:
ROLLER BEARING TABLE
FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001")
6" X 12" O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC
CHUCK
O.S. WALKER "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL
BRAND NEW "MAGNESCALE" 2-AXIS DIGITAL READOUT DISPLAY
BIJUR AUTOMATIC LUBRICATION SYSTEM
2 H.P. BROWN & SHARPE "DIRECT DRIVE" SUPER-PRECISION
SPINDLE DRIVE
MACHINE IS WIRED FOR 3/60/230 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
* * EXCEPTIONAL CONDITION& APPEARANCE (ORIGINAL PAINT) * *
