Top Seller
2008 30" Swing 39" Centers
Location:
Harrison, NJ
Price:
$52,500 USD
Manufacturer:
Haas lathes
Distance between Centers:
39"
Spindle Nose:
A2-6

Specifications

Condition:
used
Year:
2008
Serial number:
3084031
Stock number:
154160
New:
NOV. 2008
Chuck size:
10"
Spindle nose:
A2-6
Spindle motor:
30 HP
Machine weight:
16,000 LBS
Rapid traverse:
710 IPM
X-axis travels:
11.30"
Z-axis travels:
34"
Bar feeder size:
8' X 4 1/2'
Number of tools:
12
Tailstock taper:
MT#4
Tailstock thrust:
300-1500 LBS
Tailstock travel:
33.5"
Swing over cross slide:
14.5"
Swing over front apron:
30"
Distance between centers:
39"
Standard bore / bar capacity:
3.5"/ 3"
Approx. dims w/ chip conveyor:
162"x77"x74"
Maximum cutting diameter x length:
17" X 34"
Subcategory:
Cnc machines

Description

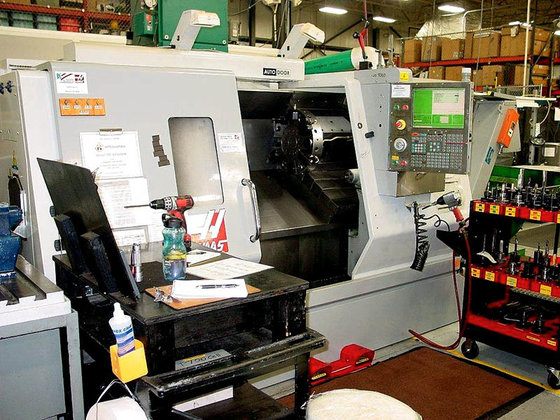

HAAS SL-30T CNC TURNING CENTER WITH BAR-FEEDER
NEW: NOV. 2008
SWING OVER FRONT APRON....................... 30"
SWING OVER CROSS SLIDE....................... 14.5"
CHUCK SIZE................................... 10"
STANDARD BORE / BAR CAPACITY................. 3.5"/ 3"
DISTANCE BETWEEN CENTERS..................... 39"
MAXIMUM CUTTING DIAMETER X LENGTH............ 17" X 34"
SPINDLE SPEEDS (OPTIONAL 2-SPEED GEARBOX).... 3,400 RPM
SPINDLE MOTOR................................ 30 HP
SPINDLE NOSE................................. A2-6
X-AXIS TRAVELS .............................. 11.30"
Z-AXIS TRAVELS .............................. 34"
RAPID TRAVERSE............................... 710 IPM
NUMBER OF TOOLS ............................. 12
TAILSTOCK TAPER ............................. MT#4
TAILSTOCK TRAVEL ............................ 33.5"
TAILSTOCK THRUST ............................ 300-1500 LBS
MACHINE WEIGHT............................... 16,000 LBS
APPROX. DIMS W/ CHIP CONVEYOR................ 162"x77"x74"
BAR FEEDER SIZE.............................. 8' X 4 1/2'
EQUIPPED WITH:
* HAAS CNC CONTROL
* HAAS SERVO BAR 300 AUTOMATIC BAR FEEDER
* 2 SPEED GEARBOX
* 10" 3-JAW HYD. CHUCK
* TOOL PRESETTER
* 12 POSITION HAAS VDI TURRET
* PROGRAMABLE HYDRAULIC TAILSTOCK
* AUTO DOOR
* HIGH INTENSITY LIGHTING
* JORGENSEN CHIP CONVEYOR
* HIGH PRESSURE COOLANT
INSPECT UNDER POWER IN EAST COAST PLANT
