Location:
Navasota, TX

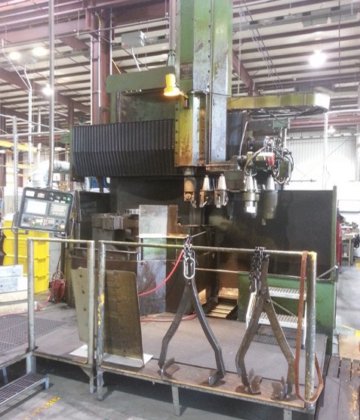

Manufacturer:
Bullard boring mills
Model:
46 Dyna-Au-Tape

Specifications

Condition:
used
Year:
1980
Serial number:
33776
Stock number:
B620031
Feeds:
.001 To 100 I.P.M.
Weight:
60,000 Lbs.
Way cover:
Yes
Main motor:
75 Hp.
Ram stroke:
60"
Table size:
46"
Maximum swing:
58"
Condition info:
Very Good
Retro - fitted:
Fanuc 16 T
Rapids traverse:
120 I.P.M.
Table speeds low:
0 To 100 Rpm's
Table speeds high:
0 To 398 Rpm's
Retro fit completed:
2006
Tool changer stations:
8 Tool
Maximum height under rail:
60"
Maximum height under ram face:
68"
Approximate overall dimensions:
120"X120"X144" Vertical

Description

Specification Description
Retro - Fitted Fanuc 16 T
Table Size 46"
Maximum Swing 58"
Maximum Height Under Ram 54"
Ram Stroke 46"
Table Speeds Low 0 To 100 Rpm's
Table Speeds High 0 To 398 Rpm's
Feeds .001 To 100 I.P.M.
Rapids Traverse 120 I.P.M.
Main Motor 75 Hp.
Tool Changer Stations 8 Tool
Approximate Overall Dimensions 120"X120"X144" Vertical
Weight 50,000 Lbs
Way Cover Yes
Note: Machine Is In Plant Under Power
Condition: Every Good
