Location:
Elk River, MN
Manufacturer:

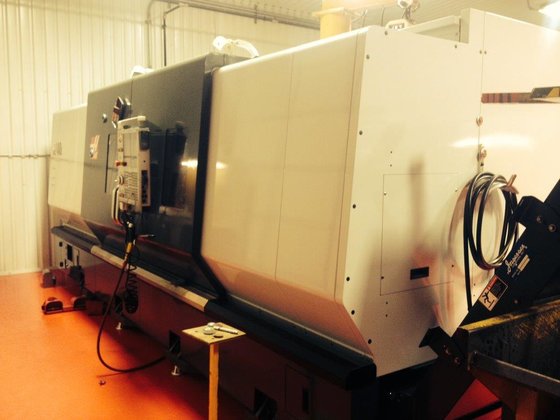

Haas lathes
Model:
ST-40LTB
Spindle Bore:
7"
Spindle Nose:
A2-11

Specifications

Condition:
used
Year:
2012
Stock number:
2838
Bar capacity:
6.5"
Spindle bore:
7"
Spindle nose:
A2-11
Spindle motor:
60/55 HP
X-axis travel:
17"
Z-axis travel:
80"
Spindle speeds:
1400 RPM
Maximum cutting length:
80"
Maximum cutting diameter:
25.5"
Number of tool stations in turret:
12 Stations
Subcategory:
Combination
Subcategory 2:
Cnc turning centers

Description

Equipped With:
Big Bore Option (7")
Long Bed Option (80")
Kitawaga Hydraulic Steady Rest (4.33" - 12.20")
Steady Rest Provision
18" 3-Jaw Chuck
2-Speed Gearbox
Programmable Tailstock
Extra Performance Option (55HP)
Chip Conveyor
Automatic Tool Presetter
Extended Tool Pocket
High Pressure Coolant (300 PSI)
High Intensity Lighting
Spindle Orientation
Rigid Tapping
USB Drive
