JOLIET Power Equipment - Motors
Location:
Joliet, IL
Manufacturer:
JOLIET
Model:
JEC-HTM-1500D

Specifications

Condition:
new
Rental:
No
Division:
Equipment
Horsepower:
1,500
Subcategory:
Power equipment
Subcategory 2:
Support equipment
Subcategory 3:
Motors - electric

Description

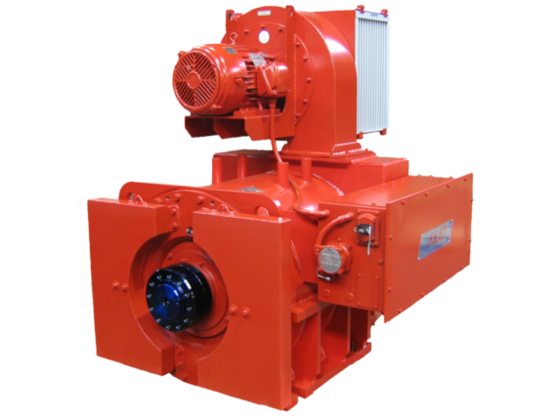

Joliet HTM1500D New Horizontal AC Drilling Motor delivers a continuous 1500HP rating for mud pump and rotary table applications and boasts an impressive intermittent rating of 2250HP for drawworks duty. The continuous rating is at 600/690 VAC, 1350 Amperes, 45.6 Hertz, 900/1800 RPM. Features:, Form Wound, Class 200 Insulation, Copper Alloy Rotor Bars and End Ring, 4532 Alloy “Oversized” High-Strength Shaft, Single Shaft with Oilfield Hub, PE & OPE Insulated Bearing, IP44 Enclosure, Pressure Sensor, Explosion Proof, Space Heater, 120 or 240 VAC, Explosion Proof, Speed Sensor Mount, Motor is dimensionally interchangeable with a GE™ 752 motor, ISO 9001:2000 Quality Program, Shrink-wrap w/Desiccant, 12/18 Month Warranty., Inverter Duty, Approx. Weight: 6,615 Lbs., 3,000 Kg, New Cushioned Export Spec. Shipping Skid, Pressurized connection box, Blower Assembly
