Location:
York, PA
Price:
$15,000 USD
Model:
G18

Specifications

Condition:
used
Year:
1978
Stock number:
15098
Size:
#3
Subcategory:
Grinders, jig

Description

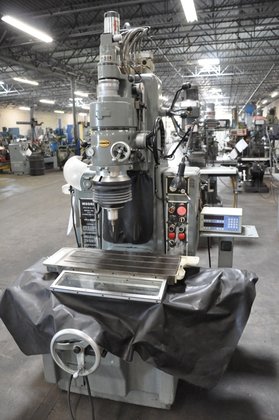

G18 MOORE JIG GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $15,000.00
Stock # 15098
Serial # G2615
New: 1978
Model: G18
Table Size: 11" x 24"
Table Travel: 18"
Saddle Travel: 11"
Spindle Housing Vertical Travel: 12-5/8"
Spindle Vertical Travel: 3-5/8"
Distance Table to Wheel Collet: 2" Min. to 18" Max.
Center of Spindle Back to Column Ways: 10"
Center of Spindle Back to Column Below the Ways: 13-1/2"
Infinitely Variable Spindle Speeds: 25 to 225 RPM
Infinitely Variable Spindle Feeds: 2 to 120 SPM
Grinding Capacity: 1/64" to 3-1/2" Standard, or
Up to 13-1/2" with Extension Plate
Main Spindle Slide Adjustment: 1-1/2º Either Way
3º Included Angle
Radial Offset of Grinding Spindle
A. From Center to 1-1/8" Off Center by Rough Adjustment
B. While Running .0001 Adjustment for Distance of .100
Anywhere in the 1-1/8" Range
Hardened & Ground Ways
(1) Grinding Head
2-Axis C-Tek Digital Readout
Work Light
Overall Dimensions: 63" F-B x 55" L-R x 88" H
Machine...
