Top Seller
MESSER PLASMA, BURN, FLAME in
Location:
Dodge Center, MN
Manufacturer:
MESSER
Model:
TMC4500 DB
Capacity:
1-1/2"

Specifications

Condition:
new
Stock number:
061947
Tolerances:
0.002"
Repeatability:
+/- 0.010"
Cutting widths:
16'-28'
Cutting lengths:
200'
Tapping diameter capacity:
1-1/2"

Description

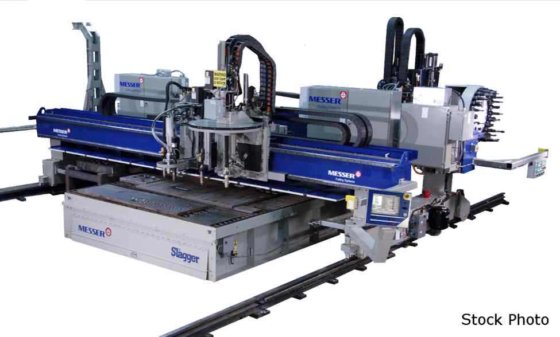

MESSER (NEW) MODEL TMC4500 DB GANTRY CUTTING
MACHINE
CUTTING WIDTHS ................ 16'-28'
CUTTING LENGTHS ............... 200'
DRILLING DIAMETER CAPACITY .... 4"
TAPPING DIAMETER CAPACITY ..... 1-1/2"
TOLERANCES .................... 0.002"
POSITIONING SPEED CAPACITY .... 1,400 IPM
MOTION ACCURACY IN 72" TRAVEL . +/- 0.015"
REPEATABILITY ................. +/- 0.010"
FEATURES
115 LB/YD CRANE RAIL FOR X AXIS MOTION
DUAL MASSIVE GANTRY PROCESS BEAMS
PRECISION LINEAR Y-AXIS WAY SYSTEM
GLOBAL CONTROL PLUS WINDOWS INTERFACE
VIRTUAL SERVICE REMOTE DIAGNOSTICS/CONSULT
SERVICE POWER TRACK IN BOTH X AND Y AXES
HIGH-SPEED PROGRAMMABLE LIFTERS
MADE IN THE USA - ISO 230-2 STANDARDS
