20" Swing 1.5HP Spindle Clausing
Location:
Harrison, NJ
Price:
$2,450 USD
Manufacturer:
Clausing presses
Capacity:
1-1/4" DIA

Specifications

Condition:
used
Serial number:
512938
Stock number:
152662
- low:
150 - 1,000 R.P.M.
- high:
300 - 2,000 R.P.M.
Age info:
1970'S
Condition 2:
**** EXCELLENT ****
Spindle taper:
#3 MORSE
Spindle travel:
6-1/2"
Approximate weight:
640 LBS.
Capacity, hand feed:
1-1/4" DIA
Base working surface:
13" X 15-1/2"
Overall size of table:
19-1/2" X 22"
Working surface of table:
15-1/2" X 18"
Drills to center of circle:
20" DIAMETER
Max distance spindle to base:
43-3/8"
Max distance spindle to table:
33-1/8"

Description

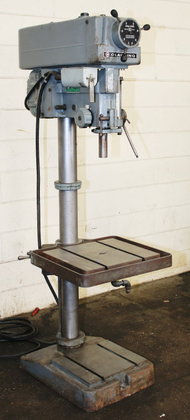

20" CLAUSING VARIABLE SPEED DRILL PRESS
MODEL: 2276, S/N: 512938, NEW: 1970'S
SPECIFICATIONS:
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15-1/2" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"
SPINDLE SPEED RANGES, INF VAR (2):
- LOW ................................ 150 - 1,000 R.P.M.
- HIGH ............................... 300 - 2,000 R.P.M.
APPROXIMATE WEIGHT .................... 640 LBS.
EQUIPPED WITH:
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE
* T-SLOTTED TABLE & BASE
* 3/4 / 1-1/2 H.P. 3/60/220 VOLT 850-1,725 R.P.M. TWO-SPEED
DRIVE MOTOR AND ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
