Top Seller
1998 19.7" Swing 79.5" Centers
Location:
Harrison, NJ
Price:
$49,500 USD
Manufacturer:
Takisawa lathes
Spindle Bore:
4.13"
Spindle Nose:
A2-11

Specifications

Condition:
used
Year:
1998
Stock number:
154178
New:
1998
Max. swing:
23.62"
Bar capacity:
3"
Spindle bore:
4.13"
Spindle nose:
A2-11
X-axis travel:
9.8"
Z-axis travel:
81.9"
Approx. weight:
19,800 LBS
Spindle speeds:
25-2500 RPM
Main spindle motor:
30/35 HP
Max. turning length:
79.52"
Max. turning diameter:
17.32"
Tailstock body travel:
81.2"
Tailstock quill center:
MT#5
Tailstock quill stroke:
7.1"
Max. swing over carriage:
19.68"
Tailstock quill diameter:
4.3"
Subcategory:
Cnc machines

Description

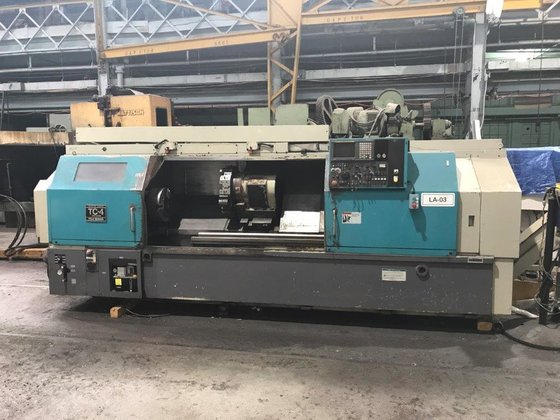

TAKISAWA TC-4 CNC TURNING CENTER
NEW: 1998
SPECIFICATIONS:
MAX. SWING .................... 23.62"
MAX. SWING OVER CARRIAGE ...... 19.68"
MAX. TURNING DIAMETER ......... 17.32"
MAX. TURNING LENGTH ........... 79.52"
BAR CAPACITY .................. 3"
SPINDLE BORE .................. 4.13"
SPINDLE SPEEDS ................ 25-2500 RPM
SPINDLE NOSE .................. A2-11
MAIN SPINDLE MOTOR ............ 30/35 HP
X-AXIS TRAVEL ................. 9.8"
Z-AXIS TRAVEL ................. 81.9"
TAILSTOCK QUILL DIAMETER ...... 4.3"
TAILSTOCK QUILL STROKE ........ 7.1"
TAILSTOCK QUILL CENTER ........ MT#5
TAILSTOCK BODY TRAVEL ......... 81.2"
APPROX. WEIGHT ................ 19,800 LBS
EQUIPPED WITH:
- FANUC 18T CNC CONTROL
- 15" 3-JAW KITAGAWA HYD. CHUCK
- 10 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
