Top Seller
1975 8" Width 18" Length
Location:
Harrison, NJ
Price:
$6,950 USD
Model:
818P
Weight:
2,800 LBS

Specifications

Condition:
used
Year:
1975
Serial number:
10793
Stock number:
152425
Grinding capacity:
18" X 9"
Grinding wheel size:
12" X 1" X 3"
Grinding wheel motor:
1.5 / 1.8 HP
Table clamping surface:
30" X 8"
Cross movement of table:
8-1/2"
Standard magnetic chuck:
8" X 18"
Approximate machine weight:
2,800 LBS
Grinding spindle speeds (2):
1700 - 3400 RPM
Longitudinal movement of table:
20"

Description

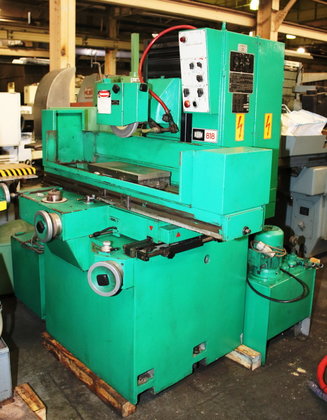

8" X 18" BLOHM "HIGH-PRECISION" SURFACE GRINDER
MODEL: 818P S/N: 10793 NEW: 1975
GRINDING CAPACITY ............................................. 18" X 9"
TABLE CLAMPING SURFACE ................................... 30" X 8"
MAX. DISTANCE TABLE TO SPINDLE CENTER ......... 20-1/2"
CROSS MOVEMENT OF TABLE ................................ 8-1/2"
LONGITUDINAL MOVEMENT OF TABLE .................... 20"
STANDARD MAGNETIC CHUCK ................................ 8" X 18"
GRINDING SPINDLE SPEEDS (2) .............................. 1700 - 3400 RPM
GRINDING WHEEL MOTOR ...................................... 1.5 / 1.8 HP
GRINDING WHEEL SIZE ........................................... 12" X 1" X 3"
APPROXIMATE MACHINE WEIGHT ........................... 2,800 LBS
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL TABLE TRAVERSE
ELECTRO-MECHANICAL POWER CROSS TRAVERSE
POWER RAPID CROSS TABLE POSITIONING
HIGH PRECISION BALL BEARING ASSEMBLIES FOR TABLE
AND SADDLE RUNNING IN HARDENED GROUND AND LAPPED
INSERT WAYS
POWER RAPID POWER ELEVATION
FINE DOWNFEED OF VERTICAL FEED GRADUATION TO .00005"
(50 MILLIONTHS)
COOLANT W/SPLASH GUARDS, COOLANT CHUTE
8" X 18" WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT IN OUR HARRISON, N.J. FACILITY **
